| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-CVN350 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | Reject Conveyo | Transportation Direction: | L~R, Or R~L |
|---|---|---|---|
| Material: | Stainless Steel | Singal: | SMEMA |
| Material Feature: | Stainless Steel | Warranty: | 1 Year |

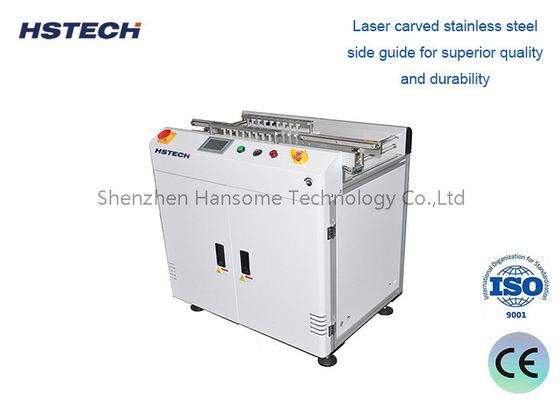

SMEMA PCB Handling Equipment Reject Conveyor with Laser Carved Stainless Steel Side Guide
This unit provide the OK and NG board selection function on the smt production line. It can be used when visual inspection of PCBs required. PCBs will continue to run, thus without interrupting the normal PCBs flow.
This PCB Handling equipment is mainly used before and after SPI, AOI, or has a temporary storage function in the production line.

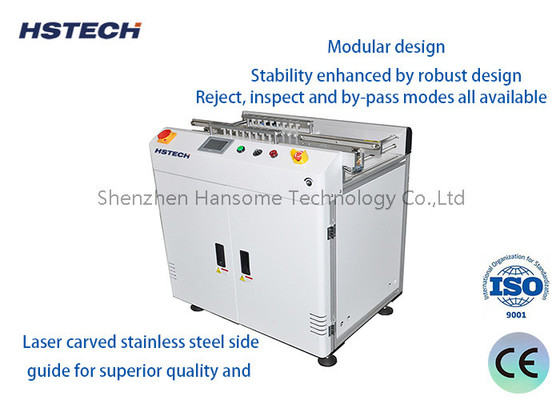

1. Reject, inspect and by-pass modes all available.
2. Modular design.
3. Stability enhanced by robust design.
4. Laser carved stainless steel side guide for superior quality and durability.
5. Ergonomic design arm rest.
6. Smooth and parallel width adjustment(lead screw).
7. Different lengths available upon request.
8. Variable speed control.
9.SMEMA compatible.
10. Adopt Panasonic PLC programmable control system, touch screen operation, simple and easy to understand.
11. Multi-stage design, easy to use and stable.
12. Can store 10 NG substrates
13. Panasonic SEMSOR is used for import, export and parking positions, which is accurate and reliable.
14. Equipped with a variety of alarm sound functions.
15. The lifting platform uses a stepper motor, which has reliable and stable performance.
16. Compatible SMEWA interface.
| Model | HS-CVN350 | HS-CVN460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 1000*690*930mm | 1000*800*930mm |
| Weight | 70kg | 90kg |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L(optional) |
| Transporting speed | 0.5~20 m/min or specify |
| Power supply | AC100-230V,50/60Hz,single phase |
| Power consumption | 100VA max |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| Communication | SMEMA |
