SMEMA Mitsubishi PLC 0.6Mpa 0.05kW PCB Board Loader

SMEMA Mitsubishi PLC 0.6Mpa 0.05kW PCB Board Loader
SMEMA Mitsubishi PLC 0.6Mpa 0.05kW PCB Board Loader

Large Image :  SMEMA Mitsubishi PLC 0.6Mpa 0.05kW PCB Board Loader

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-DS530
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package,with foam
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: PCB Destacker Other Name: Bare Board Loader
Power Supply: AC110V/220V,single Phase Program: PLC
PLC Brand: Mitsubishi Air Pressure: 0.6Mpa
PCB Thickness: 0.6~4.0mm Warranty: 1 Year
High Light:

0.05kW PCB Board Loader

,

0.6Mp PCB Board Loader

,

Mitsubishi PLC PCB Destacker

AC220V Mitsubishi PLC SMEMA Signal Light Display PCB Bare Board Loader



Introduction



This unit machine used for loading bare PCB to smt line after received down-stream machine signal.



Features



1. Mitsubishi PLC program control.
2. Easy and smart button control.

3, Manual PCB thickness adjustment.

4, Hand crank PCB width adjustment.

5, 3 color light display for machine status.

6, Aluminium structure, heavy bottom design to prevent shift.
7, Pass-through mode provided.
8, Only taken 10 seconds to change product line.
9, Uninterrupted Loading.

10, ESD transporting belt.
11, Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door

12, SMEMA compatible.



Specification



Function

Used for loading bare PCB to smt line after received down-stream machine signal.

Transport height 910±30mm
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side
PCB thickness 0.6~4.0mm
PCB components height ±35mm
PCB feeding time Approx. 10 seconds or Specify
Board weight ≤3KG
Power supply 220V,50/60Hz,±10%
Power 0.05kW
Air pressure 0.6Mpa
Air consumption <20L/min
Signal SMEMA



Model HS-DS400 HS-DS530
Efficient PCB length 50~400mm 50~530mm
Transport PCB width 50~400mm 50~500mm
PCB thickness Min 0.6mm Min 1.0mm
Machine dimension 503*770*1200mm 600*920*1200mm
Weight 110kg 130kg

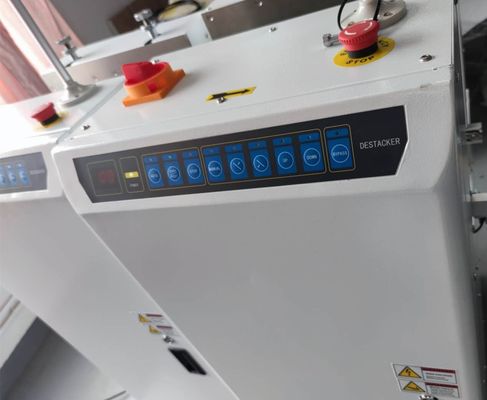

SMEMA Mitsubishi PLC 0.6Mpa 0.05kW PCB Board Loader 0

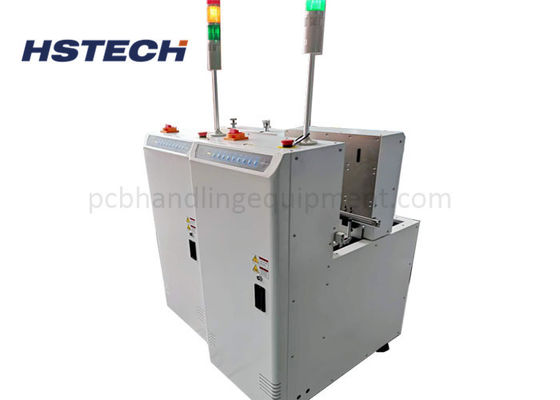

SMEMA Mitsubishi PLC 0.6Mpa 0.05kW PCB Board Loader 1

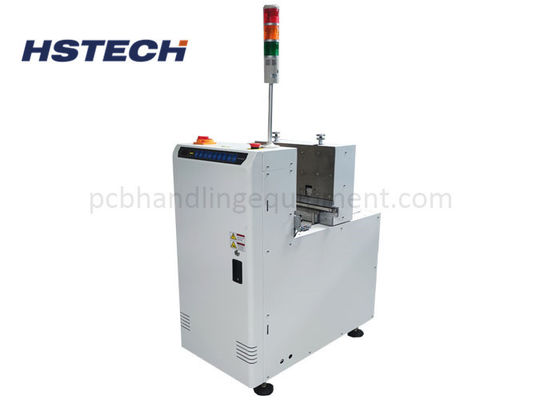

SMEMA Mitsubishi PLC 0.6Mpa 0.05kW PCB Board Loader 2
