Dual Rail PCB Handling Equipment NG / OK PCB Unloader Standard Height HS-NK250

Dual Rail PCB Handling Equipment NG / OK PCB Unloader Standard Height HS-NK250

  • Dual Rail PCB Handling Equipment NG / OK PCB Unloader Standard Height HS-NK250
  • Dual Rail PCB Handling Equipment NG / OK PCB Unloader Standard Height HS-NK250
  • Dual Rail PCB Handling Equipment NG / OK PCB Unloader Standard Height HS-NK250
Dual Rail PCB Handling Equipment NG / OK PCB Unloader Standard Height HS-NK250
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-NK250
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, with foam
Delivery Time: 10~15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Dual Rail PCB NG/OK Unloader Color: White
PLC: MITSUBISHI Relay: Schneider
Optoelectric Switch: Omron Driver Brand: Meanwell

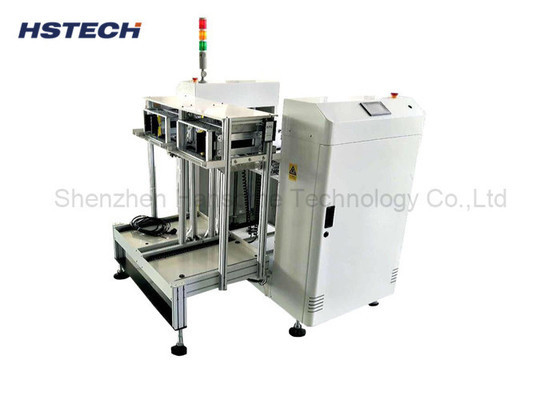

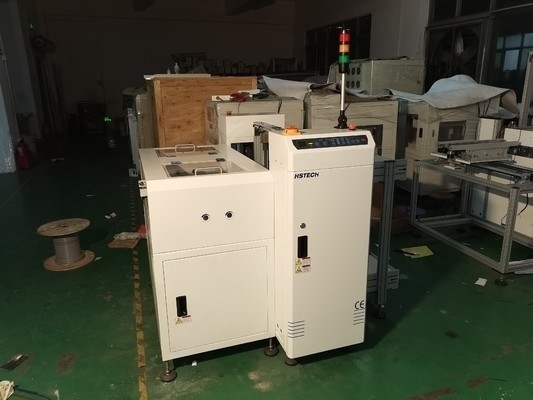

NG / OK PCB Unloader Standard Height PCB Handling Equipment with Dual Rail



Intorduction

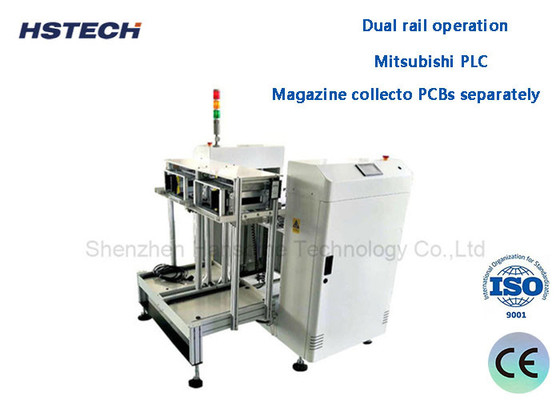

This machine is dual rail operation, used to collect the NG and OK PCBs to separately magazines.



Features

1, Dual rail operation, NG and OK boards from different rails, and collect to different magazines.



2, Mitsubishi PLC, and touch screen control, double operation panel.



3, Magazine collecto PCBs separately.



4, Selective pitch: 10mm,20mm,30mm,40mm.



5, PCB transport direction: L - R, or R - L,optional.



6, Manual/Automatic run mode selection.



7, Front rail fixed or rear rail fixed,optional.



8, Standard height for SMT application(920±20mm).



9, Tower light display.



10, SMEMA signal.



Specification

Model HS-NK250
PCB dimension (50*50)~(460*330)mm
PCB loading time Around 6s
Magazine replace time 30s
Power supply AC100-230V,single Phase,max300A
Air supply 4-6 bar, Max 10L/min
Transport height 900±20mm
Transport direction L to R,or R to L9(optional)
PCB thickness Min 0.4mm
Magazine qty top 1pc, down 1 pc, or customized
Step pitch options 1-4(10mm pitch)
Machine dimension 1460*1500*1200mm
Weight Approx 210kg
