| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-SZ350 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 12~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Turn Conveyor | Suitable PCB Dimension: | 50*50~450*350mm |
|---|---|---|---|
| Power Supply: | AC100-230V | PLC: | MITSUBISHI |
| Sensor: | Sick | Contol: | Touch Screen |
| Turn Degree: | 90 Degree, 180degree, 270degree | Signal: | SMEMA |

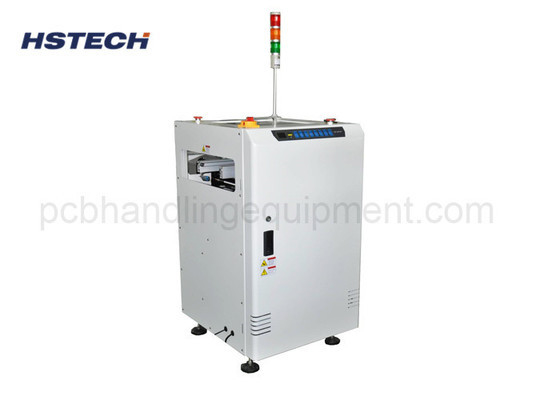

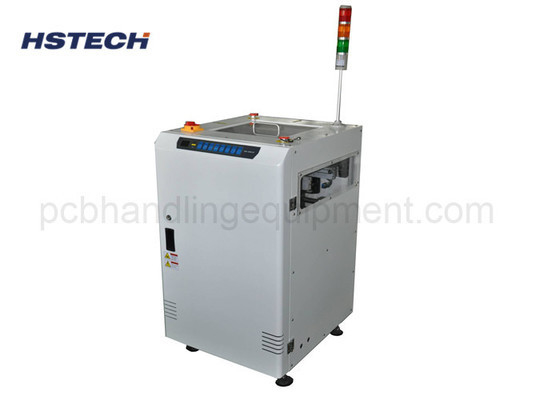

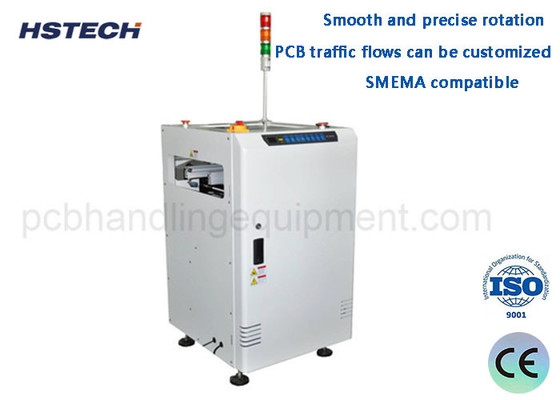

SMEMA Compatible Smooth And Precise Rotation Friendly Control Button PCB Turn Conveyor
Features
1, Enclosed design with built-in torque limiter ensure high level of safety.
2, Top safe cover can be opened for each access to hardware during Maintenance.
3, Use friendly control button.
4, Smooth and precise rotation.
5, Minimize the transfer gap between conveyors.
6, PCB traffic flows can be customized.
7,Smooth and parallel width adjustment (lead screw).
8,SMEMA compatible.
Specification
| Function | This unit is used for redirect the PCBs flow direction on production line(90degree,180degree,or 270degree) |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Cycle time | Approx 5 seconds |
| Track fixed side | Front side |
| Power supply | AC100-230V,50/60Hz,single phase |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| PCB thickness | Min 0.4mm |
| Signal | SMEMA |
| Model | HS-SZ350 | HS-SZ460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 700*750*1200mm | 840*890*1200mm |
| Weight | 150kg | 180kg |
