| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-330BF |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, with foam |
| Delivery Time: | 10~15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Buffer Machine | Storage Capacity: | 25pcs |
|---|---|---|---|
| PCB Dimension: | L(50*50)-(450*330)mm | Air Supply: | 4-6 Bar,max 15L/min |
| Material: | Stainless Steel | Warranty: | 1 Year |

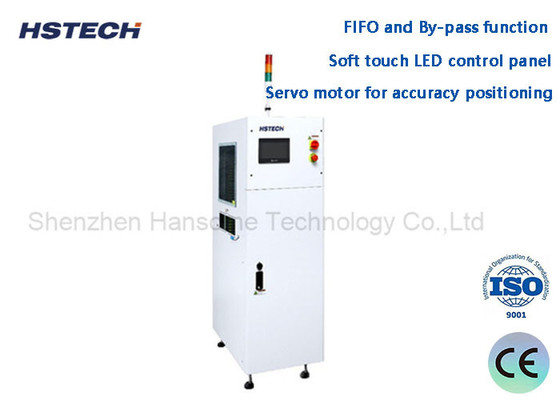

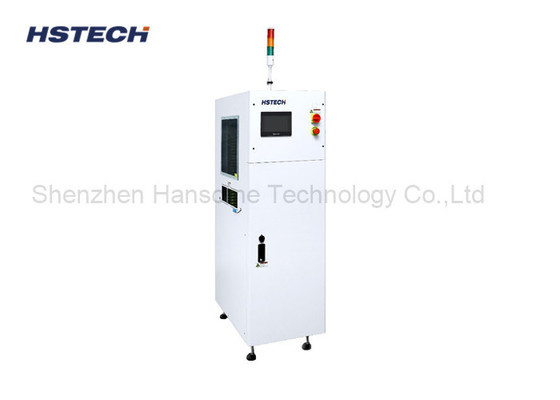

Leadscrew For Width Adjustment Three Color LED Display PCB Buffer Machine With FIFO And By-Pass Function
Features
1, With FIFO and By-pass function, or cutomized to multiple function.
2, Soft touch LED control panel.
3, Using servo motor for accuracy positioning.
4, Leadscrew for width adjustment, smooth and stable.
5, The whole machine is small volume, won't take much factory space.
6, SMEMA communication interface, can be connected with other automation equipment.
7, Three color LED display for machine status.
Specification
| Model: | HS-330BF | ||||
| Voltage: | AC220V,50/60Hz | ||||
| PCB Dimension: | L(50*50)-(450*330)mm | ||||
| Air supply: | 4-6 bar,max 15L/min | ||||
| Transport height: | 900±20(mm) | ||||
| Transport Direction: | L-R or R-L (optional) | ||||
| PCB thickness: | min 0.46mm | ||||
| Up/down pitches: | 1-4(10mm step) | ||||
| Store Capacity | 25pcs or customized | ||||
| Cycle time | Around 15 seconds | ||||
| Communication | SMEMA | ||||
| Machine Dimension: | 600*1150*1560mm | ||||
| Gross Weight: | 280kg | ||||
