| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE,RoHS |
| Model Number: | HS-600 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
| Name: | Pneumatic Stencil Cleaning Machine | Usage: | Cleaning Stencils, Steel Mesh, Cooper Screen, Etc |
|---|---|---|---|
| Cleaning Solvent: | Alcohol | Power: | Pneumatic |
| Machine Type: | High Pressure Cleaner | Material: | SUS 304 Structure |

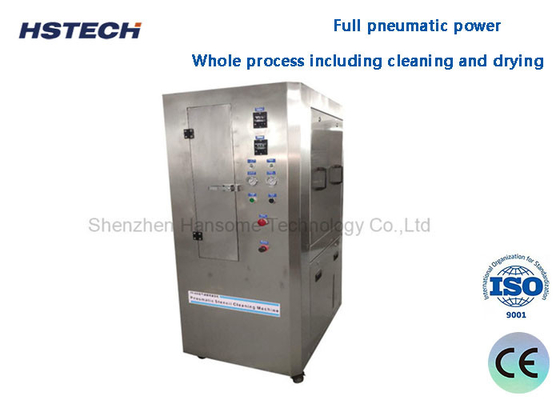

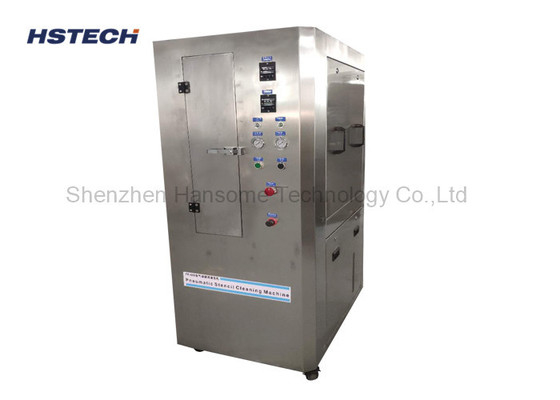

3 Level Filter SMT Steel Mesh / Cooper Screen Stencil Cleaning Machine
Introduction
This machine used to cleaning stencil, steel mesh, copper screen, gule screen, etc SMT process screens.
Features
1, Full pneumatic power, connect with the air compressor, don't need connect the 200V or 110V voltage.
2, The whole process including cleaning and drying.
3, The machine has the timer to set the show the cleaning and drying time, also has the pressure gauge to show the cleaning and drying pressure.
4, The machine also equipped with a counter, can counting the cleaning screen quantities.
5, Easy operation, after setting the cleaning and drying, press the start to begin the process.
6, Equipped with a emergency stop button, press the button, the machine will stop working if any error.
7, Whole machine made of stainless steel, much durable, resist hurt by acid and alkali cleaning chemistry.
8, Using high quality bump and air source filter, the air won't dmage the stencils.
9, 3 Level high precision filter system, the cleaning solvent can reuse many times without damage.
Specification
| Model | HS-600 |
| Product name | Screen printer stencil cleaner |
| Machine metarial | Stainless steel, anti-fire, explosion-proof |
| Power | Pneumatic |
| Application | Stencil,cooper screen,gule screen |
| Stencil size | standard 29inch and below |
| Cleaning solvent | Alcohol |
| Cleaning liquid capacity | Max 45L,Min20L |
| Best cleaning fluid using volume | 40L |
| Liquid consumption | 120ml/pc |
| Cleaning method | Rotary double side pressure injection and high pressure air |
| Cleaning time | 2~4 Min |
| Drying time | 2~5 Min |
| External air supply | 0.4Mpa~0.6Mpa |
| Consumer air quantity | 400~600L/Min |
| Air outlet size | φ125*25mm |
| Solder dross filter mode | 3 level filter(10um,5um,1um) |
| Weight | 250kg |
| Machine dimension | 980MM(L)*700MM(W)*1730MM(H) |
