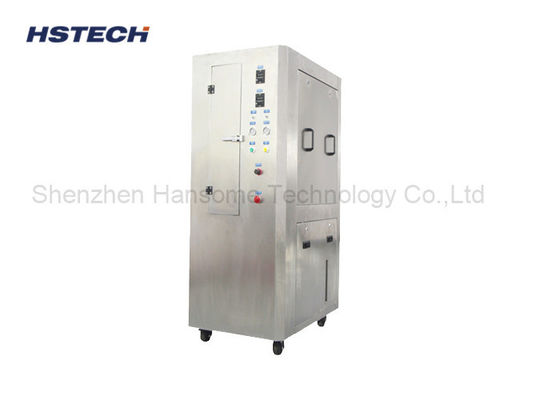

Spray Cleaning And Drying SMT Stencil Cleaning Machine In Solvent Recycle System

Spray Cleaning And Drying SMT Stencil Cleaning Machine In Solvent Recycle System
Spray Cleaning And Drying SMT Stencil Cleaning Machine In Solvent Recycle System

Large Image :  Spray Cleaning And Drying SMT Stencil Cleaning Machine In Solvent Recycle System

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE,RoHS
Model Number: HS-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 50 sets per month
Detailed Product Description
Product Name: SMT Stencil Cleaner Other Name: Steel Mesh Cleaner
Cleaning Solvent: Alcohol Power: Pneumatic
Cleaning: Spraying Cleaning And Drying Material: SUS 304 Machine Body
High Light:

pcb cleaning equipment

,

smt stencil cleaning machine

Spray Cleaning and Drying Solvent Recycle System SMT Stencil Cleaning Machine



Introduction



This machine used to cleaning stencil, steel mesh, copper screen, gule screen, etc SMT process screens.



Features



1, Full pneumatic power, connect with the air compressor, don't need connect the 200V or 110V voltage.

2, The whole process including cleaning and drying.

3, The machine has the timer to set the show the cleaning and drying time, also has the pressure gauge to show the cleaning and drying pressure.

4, The machine also equipped with a counter, can counting the cleaning screen quantities.

5, Easy operation, after setting the cleaning and drying, press the start to begin the process.

6, Equipped with a emergency stop button, press the button, the machine will stop working if any error.

7, Whole machine made of stainless steel, much durable, resist hurt by acid and alkali cleaning chemistry.

8, Using high quality bump and air source filter, the air won't dmage the stencils.

9, 3 Level high precision filter system, the cleaning solvent can reuse many times without damage.



Specification



Model HS-600
Product name Screen printer stencil cleaner
Machine metarial Stainless steel, anti-fire, explosion-proof
Power Pneumatic
Application Stencil,cooper screen,gule screen
Stencil size standard 29inch and below
Cleaning solvent Alcohol
Cleaning liquid capacity Max 45L,Min20L
Best cleaning fluid using volume 40L
Liquid consumption 120ml/pc
Cleaning method

Rotary double side pressure injection and high pressure air

Cleaning time 2~4 Min
Drying time 2~5 Min
External air supply 0.4Mpa~0.6Mpa
Consumer air quantity 400~600L/Min
Air outlet size φ125*25mm
Solder dross filter mode 3 level filter(10um,5um,1um)
Weight 250kg
Machine dimension 980MM(L)*700MM(W)*1730MM(H)
