| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-460-CY |
| Minimum Order Quantity: | 3 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 10~14 days |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
| Product Name: | SMT Conveyor | Other Name: | Link Conveyor |
|---|---|---|---|
| Color: | Blue,Grey,white | Transport Belt: | ESD Flat Belt |
| Belt Thickness: | 1.0 Mm | Voltage: | 1P AC 110V/220V 50/60HZ |
| Warranty: | 1 Year | Packing: | Wrap, Wooden Box |

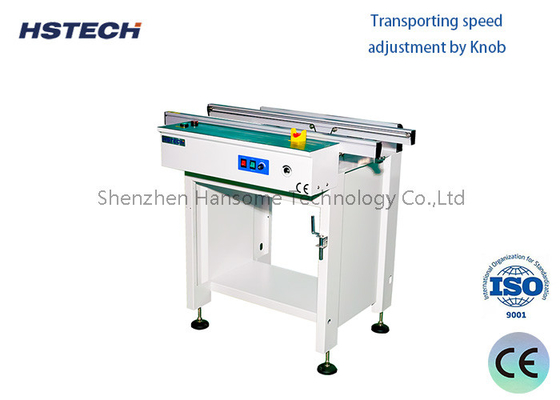

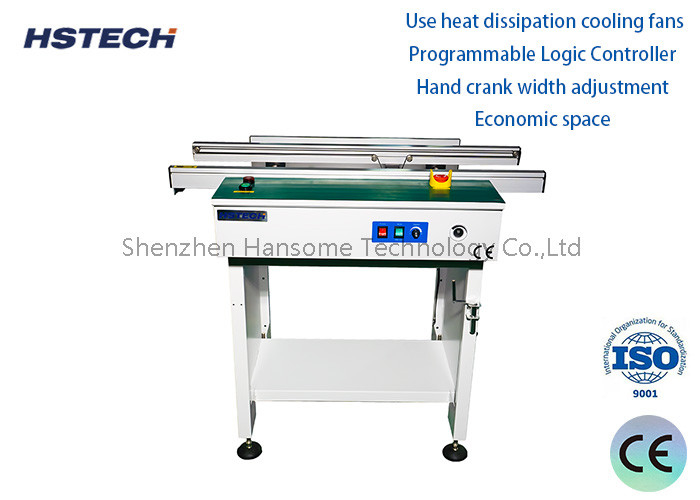

Stainless Steel LED Button Controlled PCB Handling Equipment with Adjustable Width
Used for connection between SMT production lines, can also be used for PCB buffer, inspection, testing or manual insertion of electronic components. PCB conveyor generally includes: frame, two parallel rotation in the frame on the conveyor belt, circuit boards placed in the two conveyor belts for transport, the existing conveyor belt is generally fixed in the frame position, so that the two conveyor belts transported on the width of the circuit boards are limited, thus not conducive to the different sizes of the circuit boards transport, thus making the splicing table applicability of low.
Features
1, Stable stainless steel structure.
2, Hand crand width adjust.
3, Black transpoting belt, 1.0mm thickness.
4, Aluminum alloy transporting rail.
5, LED button control, speed adjustment motor.
6, Optional function available, tower light, inspection, dust cover, etc.
7, Customized requirement available.
8, Length available, 600mm, 1000mm, 1500mm, or optional.
9, SMEMA signal for inline connection.
Specification
| Model | HS-C600/HS-C1000 | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
Check before powering on
1,Check the supply power cord for damage.
2,Check whether the equipment has good grounding.
3,Check whether the control buttons are reset.
4,Check whether the width of the guide rail is suitable.
5, check whether the belt is loose.
6,Above no abnormality can be switched on and ready for operation.
Precautions
1. Ensure that the transport part, belt, pulley and transport rail are free of foreign objects to ensure smooth and stable transport.
2. Regularly add oil to the transmission part, rack and pinion, or adjust the width of the screw, and the oiling must be carried out under the state of shutdown.
3. In case of power failure, turn off the power switch of the equipment immediately.
