| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Link Conveyor With Towerlight | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.6-4.0mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
| Type: | Automatic | Weight: | 220/240KG |

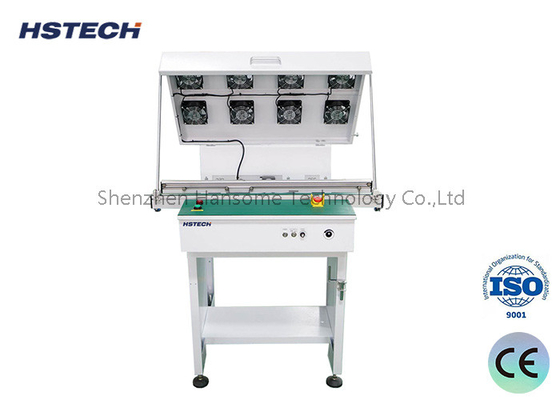

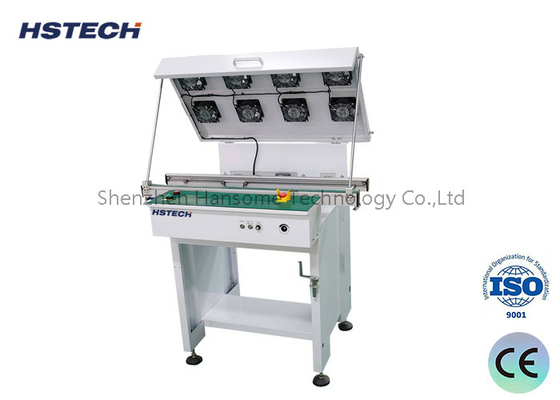

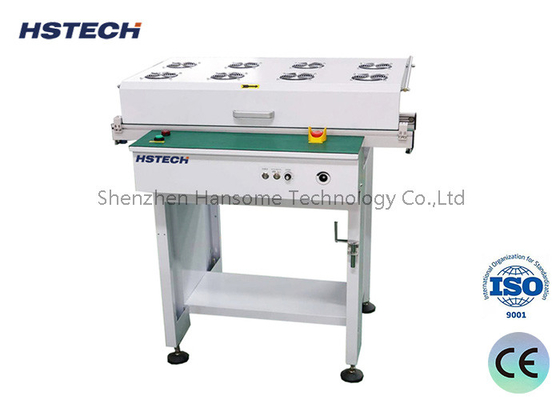

Smooth Transportation Towerlight SMT Cooling Conveyor(With Fans) With Anti Static Flat Belt
Technical Details
| Function | Used for linking the up-stream and down stream machines between SMT production line |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side, or customized |
| PCB width | 50*50~530*460mm |
| Conveyor length options | 0.5m/0.6m/1.0m/1.5m or customization |
| Speed adjust method | Knob |
| Width adjustment | Hand crank(optional auto adjust) |
| Power supply | AC110/220V,50/60Hz,±10% |
| Options | Light, Fan, Inspection function,Cover, Automatic width adjustment, dual rail,etc. |
| Signal | SMEMA |
Features
1. Use heat dissipation cooling fans.
2, Programmable Logic Controller.
3.Hand crank width adjustment
4, Economic space.
5.Use stainless steel screw,smooth and parallel width adjustment
6.Left to right travel,or right to left, front rail fixed
7.ESD working table.
8, Height adjustable and stable feet cup location.
9, Speed control.
10.SMEMA compatible.
Application
Used for linking the up-stream and down stream machines between SMT production line
