| Product Name: | NG PCB Reject Conveyor | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.6-4.0mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
| Type: | Automatic | Weight: | 220/240KG |

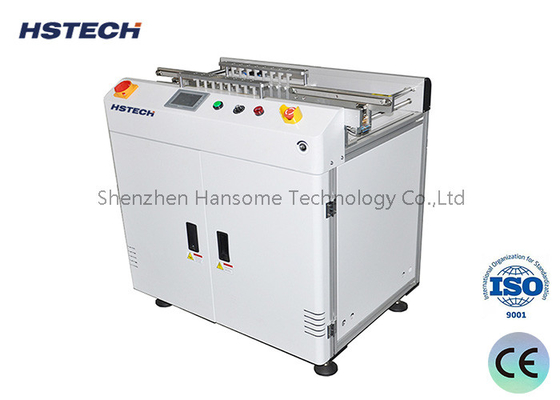

Front-Side Operation Multi-Function SMT Production Line AutomaticNG PCB Reject Conveyor
Technical Details
| Function | This unit is used to automatically separate good boards and NG boards, while allowing visual inspection for NG PCBs without any interruption on Good Board flow.It can work with any tester like AOI,SPI. |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L(optional) |
| Transporting speed | 0.5~20 m/min or specify |
| Power supply | AC100-230V,50/60Hz,single phase |
| Power consumption | 100VA max |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| Communication | SMEMA |
Specification
| Model | HS-RC390 | HS-RC390L |
| Available PCB width | 50~390mm | 50~390mm |
| Machine rail length | 600mm | 1000mm |
| Machine dimension | 700*690*930mm | 1100*690*930mm |
| Weight | 70kg | 90kg |
Features
1, Reject, inspect and by-pass modes all available.
2, Modular design.
3, Stability enhanced by robust design.
4, Laser carved stainless steel side guide for superior quality and durability.
5, Ergonomic design arm rest.
6, Smooth and parallel width adjustment(lead screw).
7, Different lengths available upon request.
8, Variable speed control.
9,SMEMA compatible.
Machine drawing
Product physical picture
Transporting rail
Lifting Sturcture
Electric control
Application
This unit provide the OK and NG board selection function on the smt production line. It can be used when visual inspection of PCBs required. PCBs will continue to run, thus without interrupting the normal PCBs flow.
