| Product Name: | PCB Flipper Inverter | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.6-4.0mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
| Type: | Automatic | Weight: | 220/240KG |

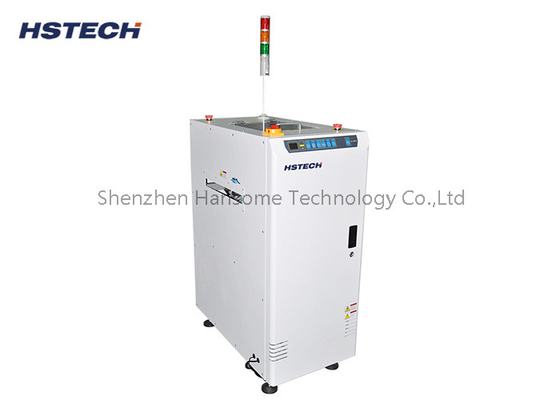

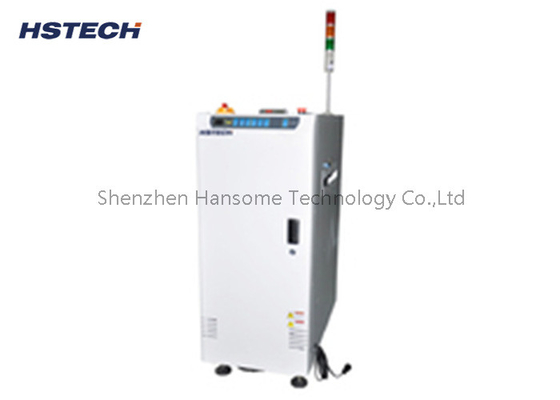

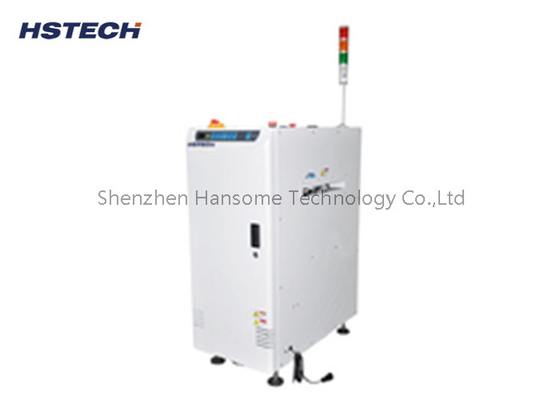

HS-IT350/500 SMEMA Compatible Automatic PCB Inverter for Double-Side Process
Technical Details
| Function | This unit is used to invert PCBs (180degree) for double-side process |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Cycle time | Approx 5 seconds |
| Track fixed side | Front side |
| Power supply | AC100-230V,50/60Hz,single phase |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| PCB thickness | Min 0.6mm |
| Signal | SMEMA |
Specification
| Model | HS-IT350 | HS-IT500 |
| Efficient PCB length | 50*50~450*350mm | 50*50~450*500mm |
| Machine dimension | 570*945*1270mm | 570*1095*1270mm |
| Weight | 130kg | 150kg |
Features
1, Enclosed design with built-in torque limiter ensure high level of safety.
2, Top safe cover can be opened for each access to hardware during Maintenance.
3, Use friendly control button,optional use touch screen.
4, Smooth and precise rotation.
5, By-pass model provided.
6, Minimize the transfer gap between conveyors.
7, PCB traffic flows can be customized.
8, Smooth and parallel width adjustment(lead screw).
9, SMEMA compatible.
Machine drawing
Application
This unit is used to invert PCBs (180degree) for double-side process.
