| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-GH350 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Multi Function Vertical PCB Buffer | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.6-4.0mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Power Consumption: | 200W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Speed: | 200-300pcs/min |
| Type: | Automatic | Weight: | 220/240KG |

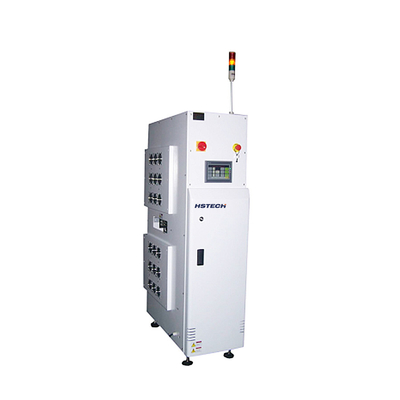

High Efficiency Multi Function Vertical Front Operation Intelligent SMT Production Line Automatic PCB Buffer
Technical Details
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Board cycle time | Approx 20 seconds |
| Maximum PCBs capacity | 20pcs or specify |
| Maximum load | 2kg/PCB |
| Track fixed side | Front side |
| Operation side | Front side |
| Indexing pitch | 20mm pitch or specify |
| Power supply | AC100-230V,1ph,300VA max |
| Air pressure | 4-6Bar |
| Air consumption | Max 10L/min |
| Signal | SMEMA |
Specification
| Model | HS-GH350 | HS-GH460 |
| Efficient PCB size | 50*50~450*350mm | 50*50~530*460mm |
| Machine dimension | 500*910*1600mm | 600*1020*1600mm |
| Weight | 150kg | 200kg |
Features
1. Use friendly soft touch LED membrane control panel.
2. FIFO,LIFO,and by pass operating modes.
3. Standard threshold signal to protect the boards in upstream reflow oven.
4. Control mode: PLC+button control or touch screen control.
5. Enclosed design ensure the safety operation.
6. Conveyor rail using special hardness treatment aluminum for long time usage and the strong PCB holding ability.
7. Smooth and precision width adjustment(lead screw).
8. Three color LED display and audible alarm working status.
9. Small machine footprint.
10. SMEMA compatible.
Machine drawing
Application
This vertical PCB buffer is designed to have the function as LIFO and by-pass functions, which can be located between SMT machines to improve the working efficiency by buffering.
