Introduction

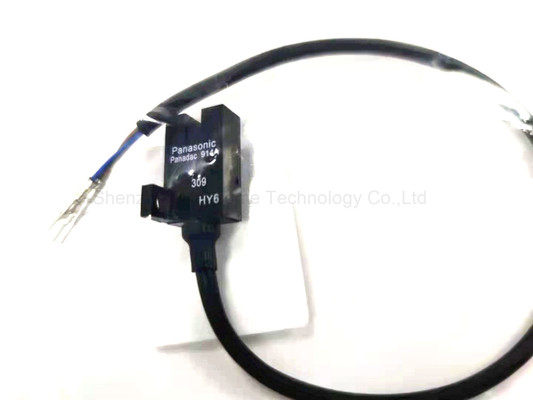

This part is a Panasonic AI machine part, it's a Sensor with 3 pins Cable, it used for replace for the older sensor with easy and convenient operation.

The Panasonic sensor is actually a sensor device that can detect light signals and convert it into electrical signals. The Panasonic sensor can detect light intensity, illumination and radiation temperature measurement and other non-electrical quantities that can directly cause changes in the amount of light. It can also be used Detect part diameter, surface roughness, strain, displacement, etc. Panasonic sensors have the characteristics of high performance, fast response speed, and non-contact, so they have extensive and important applications in the fields of industrial automation equipment and robots.

How Panasonic sensors work
Panasonic sensors are mainly composed of three parts: transmitter, receiver and detection circuit. Among them, the transmitter is used to align the target beam emitted by semiconductor light sources, light-emitting diodes, laser diodes, infrared emitting diodes, etc.; the receiver can be divided into photodiodes, phototransistors, photocells, etc., and a lens and aperture are also installed in front of the receiver. and other optical components, mainly used to receive the target beam and convert the received optical signal into an electrical signal; the detection circuit is used to detect the received electrical signal and filter out the effective signal, and pass it to the next module for processing of the electrical signal. practical application.

Specification

Classification

(1) Grooved Panasonic sensor
A light transmitter and a receiver are installed face to face on both sides of a slot, which is a slot photoelectric device. The emitter can emit infrared light or visible light, and the light receiver can receive the light if there is no obstruction. But when the object to be detected passes through the slot, the light is blocked and the photoelectric switch operates. Output a switch control signal to cut off or connect the load current to complete a control action. The detection distance of the slot switch is generally only a few centimeters due to limitations of the overall structure.

(2) Through-beam Panasonic sensor
If the emitter and receiver are separated, the detection distance can be increased. A photoelectric switch composed of a light emitter and a light receiver is called a through-beam separated photoelectric switch, or a through-beam photoelectric switch for short. Its detection distance can reach several meters or even tens of meters. When in use, the light emitter and the light receiver are installed on both sides of the path through which the detection object passes. When the detection object passes through, blocking the light path, the light receiver will act and output a switch control signal.
​

Panasonic AI machine parts
