| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | AIS300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
| Product Name: | Inline THT DIP AOI After Wave Soldering | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Signal: | SMEMA |
High accuracy linear actuator Inline THT DIP AOI After Wave Soldering 22 inch FHD LCD Automatic Soldering Robot
Introduce
The automatic soldering machine is an automated soldering equipment that mainly uses the motion function of the robot to complete the soldering operation. The core part of the automatic soldering machine is the soldering system. The soldering system is mainly composed of an automatic tin feeding mechanism, temperature control, heating element, and soldering iron tip.
Advantage
Highly reliable metal anti-static mode design makes welding sensitive components safer. Light and flexible, does not take up space, temperature, tin feeding speed, tin point size is adjustable. It is easy to operate and a novice can become proficient in it in two hours, saving 50% manpower. For health reasons, please use environmentally friendly lead-free tin wire. Especially suitable for welding and docking of various electronic connectors, LED light strings, video and audio cable plugs, headphone cables, computer data cables, small circuit boards and small electronic components in the middle of the wire harness.
Specification
| Model | AIS300 | AIS301 |
| PCB Size | 50x50mm~430x380mm | 50x50mm~350x350mm |
| Thickness | 0.3~7.0mm | |
| Warping extent | <4mm | |
| Component height | Top 150mm, bottom 25mm | |
| Camera | 5MP,color,CCD | |
| Light source | RGB | |
| FOV | 45*37mm | |
| Resolution | 20um | |
| Inspection | ||
| Mounting components defect | Missing,rolling,offset,damage,skew,redundant,dirty. | |
| Solder defect | Excess,insufficient,bridge,no foot,missing solder,non-wetting. | |
| Other function | Bar-code,QR cod,OCR | |
| Speed | 0.23sec/fov | 0.25sec/fov |
| Software/Hardware | ||
| Operation system | Ubuntu 14.04 LTD 64bit | |
| Function | Remote control, Gerber file importing, training tool for new models | |
| Industrial PC | CPU intel i5,Independent Graphics Card,12G DDR,256SSD | |
| Display | 22 inch FHD LCD | |
| Motion | High accuracy linear actuator | |
| Power supply | AC220V,1KW | |
| Air pressure | >0.5Mpa | |
| Dimension(L*H*W) | 1100*1630*1350mm | 1100*1280*1300mm |
| Net Weight | 800kg | 700kg |
Features
A, Core algorithm—— Convolutional Neural Network Algorithm
Application and Innovation in industry
Human-like inspection
Better compatibility
Training algorithm model of super large sample set
High generalization
Super detection ability, lower false positive
Supporting user self-training model
B, High wear resistance
C, Large inspection area and high compatibility
D, High inspection rate and low false positive rate.
E, Marble base, more stable.
F, Dual XY linear actuators, high speed, high accuracy
Application

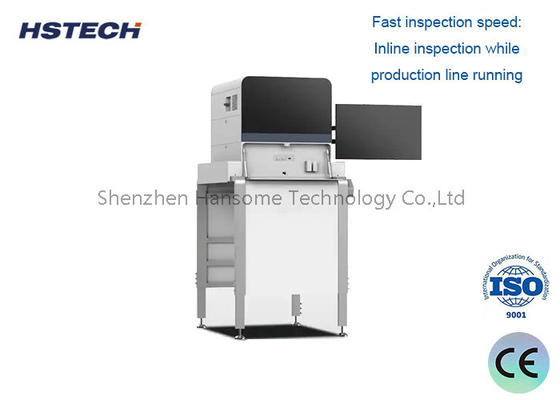

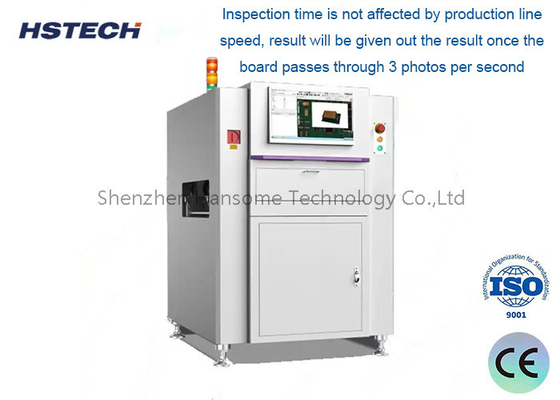

This inline THT AOI used after wave soldering machine in DIP production line,it used for Correcting the wrong units, which can reduce repairs and time. The passing rate can be improved efficiently. This machine widely used for inspecting TV mainboard,PC mainboard,power board,industrial control board,Mini household electronic appliances and other PCBAs.
About Packaging
