| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | TCK Series Thermal Profiler | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Signal: | SMEMA | Application: | Electronic Assembly |
| Color: | Silver | Control System: | PLC |
| OEM/ODM: | Available | Type: | Automatic |

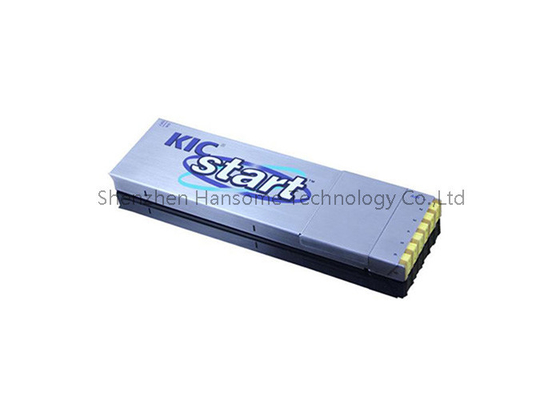

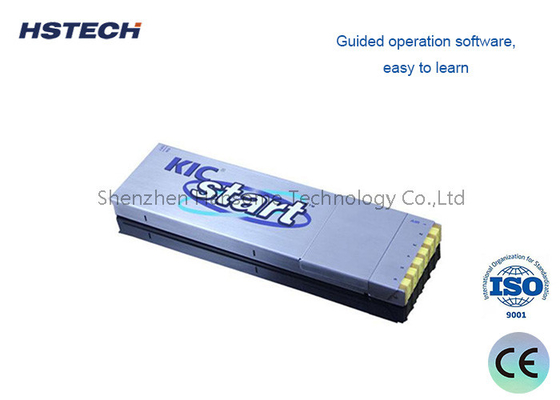

TCK Series Thermal Profiler: 80000 Data Point/Channel, 0.1℃ Resolution, RF Transceiver, Hi-Temp Adhesive Tape
1. Thermal profiler 2. Insulation box
3. Temperature test line 4. Data download line
5. Charger 6. Hi-temp adhesive tape
7. Software CD 8. “+” screwdriver 9. Tweezers
10. Insulated gloves 11. Solder wire
12. Scissors 13. Instrument box
14. User Manual 15. Acceptance Certificate
16. RF Transceiver (Choose Composition)
17. Wave Test System (Choose Composition)
Main Technical Specifications
1,Thermocouple: K-type thermocouple
2,Sampling interval:0.05sec---600sec Set with software
3,Record data:80000 point/channel, Can record 20 sets profile
4,Resolution: 0.1℃
5,Temperature measuring range: 0—1000℃
6,Temperature measuring accuracy: ±1.0℃
7,Total power: ≤120mW
8,Operating voltage:3.6VDC, rechargeable battery
9,Dimensions: 195(L)×82(W)×21(H)mm 195(L)×103(W)×21(H)mm
10, Insulation box:245(L)×100(W)×30(H)mm
10,Start Mode : Manual, specified time or specified temperature
11,Record mode: Monitor/Record
12,Connection mode:USB/RF
13,Software version:Profilermanager 2.0
Product Library Manager
Machine Library Manager
Solder Library Manager
Recipe Library Manager
Data analysis
PWI
Peak Temp,Times of overtop the Temp
Times of between Temp(Reflow)
Slope of between Temp(Reflow)
Slope of between Times(Wave)
