| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | NONE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Machine Name: | Automatic Solder Paste Thawing Machine | Working Mode: | Voltage Mode |
|---|---|---|---|
| Working Voltage: | AC220V 60HZ | Net Weight: | 16kg |
| Product Material: | Steel Plate Spray Paint | ||
| High Light: | Intelligent Solder Paste Thawing Machine,Touch Screen Solder Paste Thawing Machine |
||

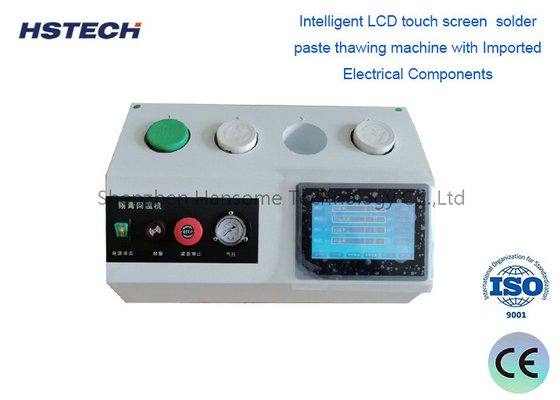

Intelligent LCD touch screen solder paste thawing machine with Imported Electrical Components
Introduce
Automatic solder paste thawing machine, also called solder paste aging machine, with the timer, the machine can easily achieve the control of the solder paste temperature warm up time, which can save much time to record the time of solder paste back to the ambient temperature after taken out off the refrigerated room. It is a efficiency way to control the temperature of the solder paste, make sure the activity of the solder paste, ensure the printing quality, better to control the production plan, improve production efficiency.
Specification
| Machine name | Fully automatic solder paste reheating machine | product brand |
| Operating mode | voltage mode | Product net weight: 16kg |
| Operating Voltage | AC220V 60HZ | Product material: steel plate spray paint |
| Product Size |
Four slots L670*W220*H335mm Tank size: length 150*depth 100*height 110mm |
|
| Ability to work |
The solder paste and red glue reheating machine/defrosting machine can be used with solder paste in the slot and needle-type red glue (all small red glue with a total length of less than 120MM can be used), and the solder paste and red glue can be switched intelligently. New and old customers can choose from 4/5/6/8/10/12/14 workstations to 30 workstations. Non-standard can be customized. Supports 250G/500G solder paste, total length less than 120MM needle tube red glue. |
|
Function
1. Fully automatic timed solder paste rewarming machine. One machine has multiple slots and can intelligently reheat multiple cans of solder paste at the same time to ensure the activity of the solder paste; the steel plate of this machine has a baked-painted appearance, with a smooth and tidy surface, fashionable and beautiful.
2. The machine is assembled and produced using imported electrical components;
3. Each can of solder paste is placed in a slot with independent time control. Once the time is set, the solder paste slot will automatically lock. The door cannot be opened before the timer expires. When the set temperature recovery time is reached, the slot will be locked. It will unlock automatically.
4. The machine can be operated with multiple tanks for temperature recovery, and each slot can hold 500G solder paste tanks.
The solder paste application and requirement
When the solder paste taken out of the refrigerator before using, the temperature of the solder paste will be much lower than the room temperature. If open the solder paste bottle without thawing, it’s very easy to condense the moisture in the air and adhere to the solder paste. Also if use the solder paste without thawing, after printing, on the reflow soldering process(temperature over 200℃), the water on the solder paste is rapidly vaporized due to strong heat, will lead to the solder paste explosive, then will damage the solder tin and components. So for better printing and soldering performance. The solder paste must thaw before using.
The advantages of the machine
A, The natural temperature thawing can keep the activity of the flux, which the mixing thawing can not solve the problem.
B, Use the solder paste thawing machine can control the solder paste to the room temperature,which will help control the production, improve the efficiency.
C, Use this machine means control the first process of the SMT production, this is the first step to produce a good quality product.

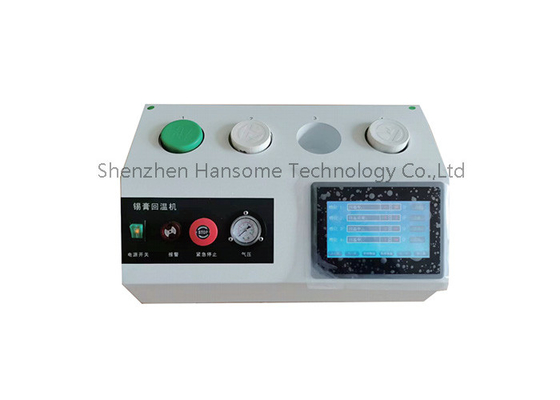

Product physical picture
