Durable Blade Design PCB Depaneling Equipment Blade Miving PCB Separator with Induction Function

Durable Blade Design PCB Depaneling Equipment Blade Miving PCB Separator with Induction Function

Introduction

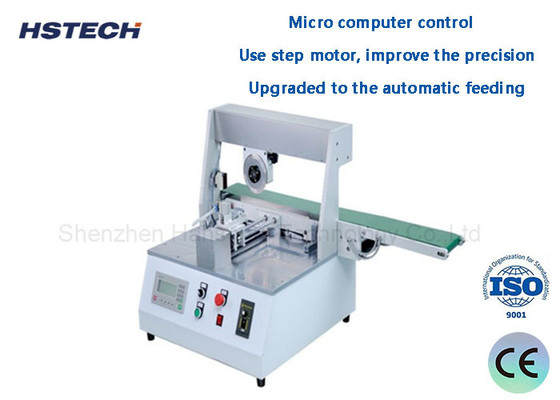

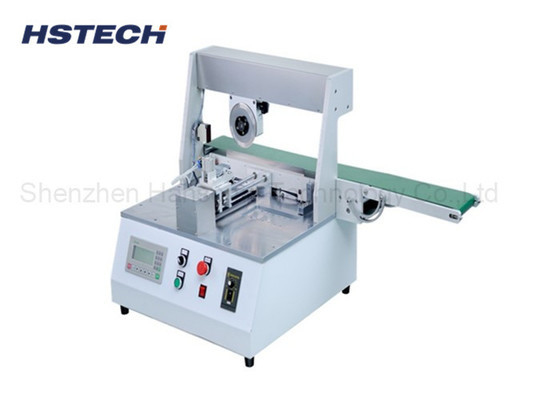

This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.

The microcomputer controls fully automatic depaneling, which is highly efficient and has the advantages of a knife-type depaneling machine:

the knife-type splitting machine has low stress and avoids problems such as hidden damage and tin cracks on the circuit board. It has wide applicability and is suitable for double-sided components with components. circuit board

Features

1, This machine can use for cutting all kinds of boards with v-slot.

2, Durable blade design, balde can be shaped at least twice.

3, Circular blade height can be adjusted to fit the different kinds of PCB with different height components.

4, Blade moving operation,relative low force stress,single motor control the balde, easy and conovenient operation.

5, With induction function, the machine will stop operation if the operator touch the space of balde moving.

6, Security, with double protective device,no need worry about the security production problem.

7, Durable, using high quality good material blade.

8, Machine with conveyor belt to transfer separated PCB boards to the production line.

9. High safety, double protection of light curtain and knife guard to ensure safe production.

10,PLC accurately controls the automatic separator, and the machine can be connected to the pcb loader and unloader to achieve unmanned operation and fully automatic plate separation.
