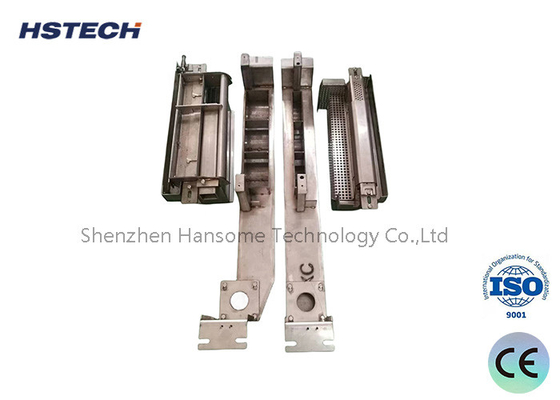

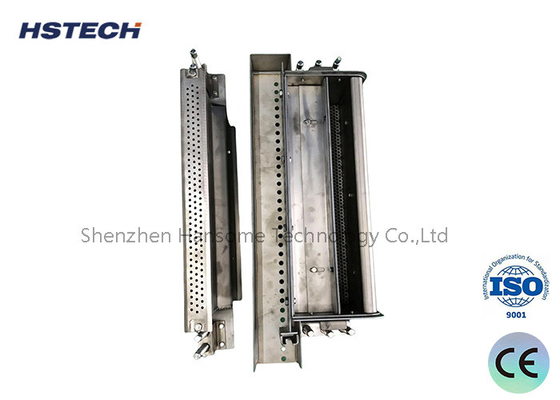

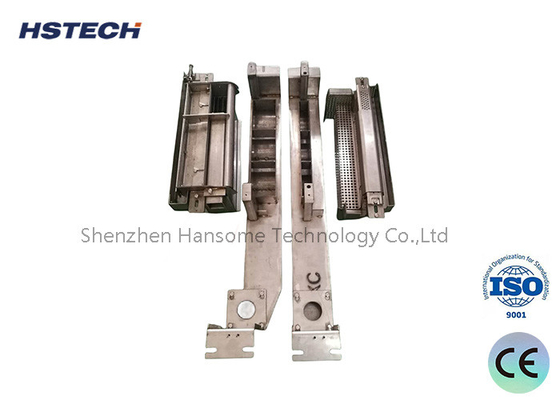

JT Wave Soldering 350 New Style Guide Trough Stainless Steel Tin Furnace Nozzle Cover SMT Machine Parts

JT Wave Soldering 350 New Style Guide Trough Stainless Steel Tin Furnace Nozzle Cover SMT Machine Parts

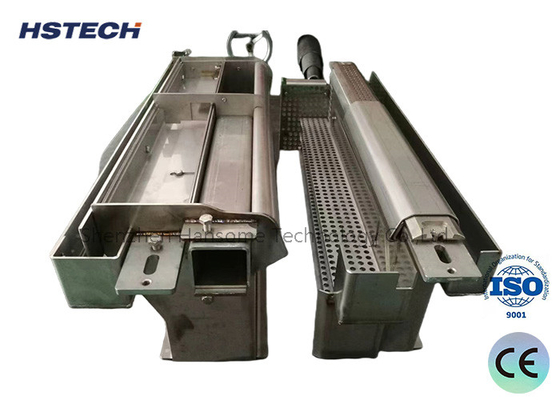

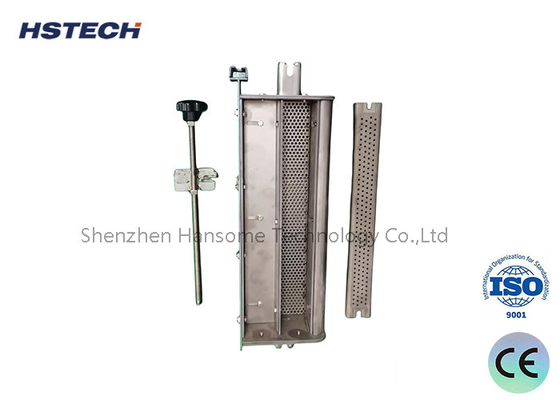

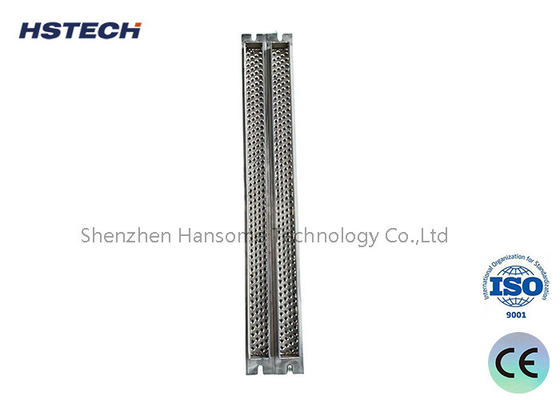

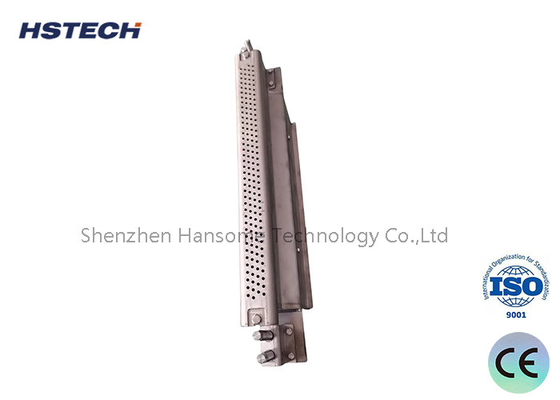

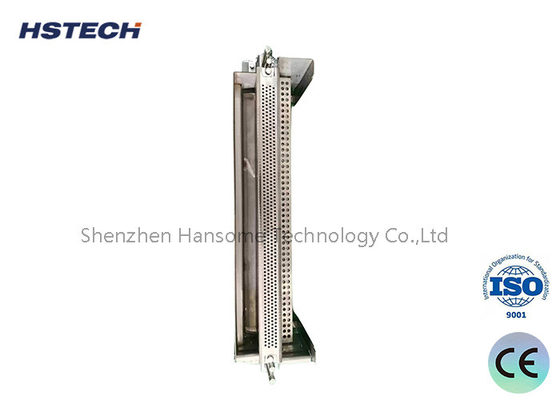

一,Wave soldering furnace nozzle

Introduce
The nozzle of the wave soldering furnace is an important component in the wave soldering process. Its function is to spray solder and form a solder wave, which is used to solder the solder joints on the printed circuit board (PCB).

Features
1. Precise solder control: The wave soldering furnace nozzle can accurately control the amount and position of solder injection, ensuring that each solder joint is covered with the appropriate amount of solder to improve soldering quality and consistency.

2. High-temperature-resistant materials: Since wave soldering involves high-temperature solder, the nozzle of the wave soldering furnace is usually made of high-temperature-resistant materials to ensure stability and durability in high-temperature environments.

3. Smooth welding process: The well-designed wave soldering furnace nozzle can ensure the uniform flow of solder during the welding process, thereby ensuring the smoothness of the welding process and reducing the occurrence of welding defects.

4. Easy to maintain: Wave soldering furnace nozzles usually have a modular design and are easy to disassemble and clean to reduce equipment maintenance time and improve production efficiency.

5. Wide applicability: The wave soldering furnace nozzle is suitable for various types of PCB and soldering applications, including traditional wave soldering, lead-free soldering, etc., and has strong versatility and flexibility.

6. Customizability: Some wave soldering furnace nozzles can be customized according to customer needs, such as different nozzle shapes, sizes and materials to meet specific welding requirements.

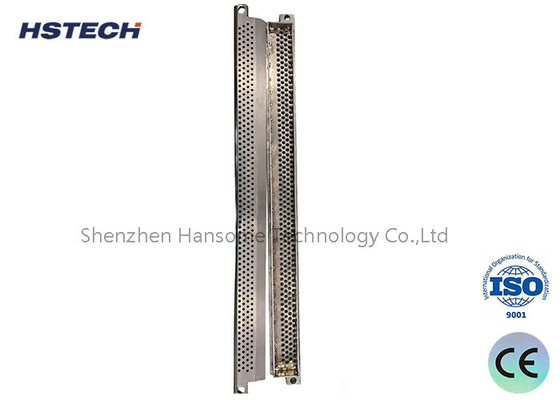

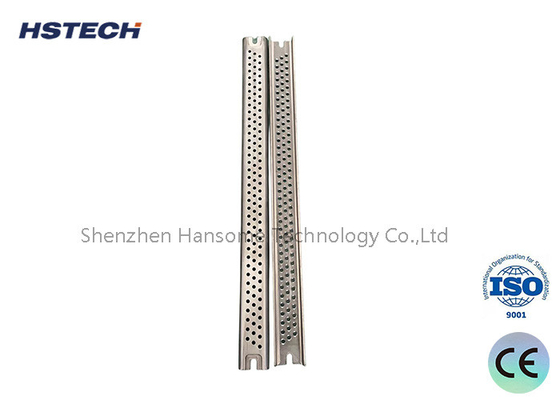

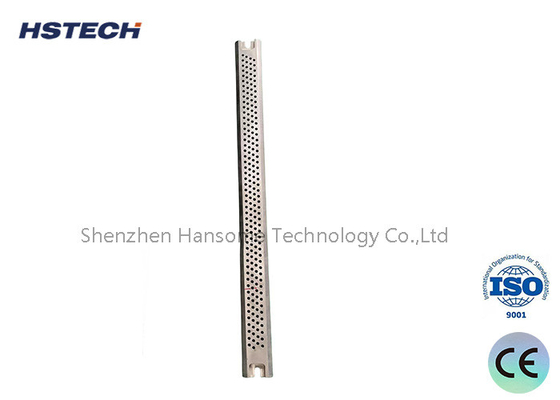

二,Tin furnace diversion trough

Introduce
The tin furnace guide trough is one of the key components in wave soldering equipment. It is usually located at the bottom of the solder tank. It is used to guide the molten solder to flow to the welding area and ensure that the solder forms an ideal solder wave peak on the solder joint.

Features
1.Shape design: Tin furnace guide channels usually have a special shape design, aiming to guide the molten solder evenly to the welding area to ensure that the solder forms uniform wave peaks on the solder joints.

2.Material selection: Diversion channels are usually made of high temperature and corrosion resistant materials, such as stainless steel, ceramics, etc., to ensure stability and durability in high temperature and chemically corrosive environments.

3.Diversion efficiency: The design of the tin furnace diversion trough should have good diversion efficiency, which can effectively guide the solder flow to the welding area, reduce the overflow and waste of solder, and improve the welding quality and efficiency.

4.Adjustability: Some trough designs have adjustable features that can be adjusted according to different welding requirements and workpiece sizes to achieve the best welding results.

5.Easy to clean and maintain: The tin furnace guide trough requires regular cleaning and maintenance to ensure the stability and reliability of the welding process. Therefore, a properly designed diversion trough that is easy to disassemble and clean can greatly reduce equipment maintenance time and improve production efficiency.

6.Wear resistance: Since friction may occur when solder flows through the guide groove, the guide groove needs to have a certain degree of wear resistance to ensure long-term stable operation and service life.

三, Tin furnace cover

Introduce
The tin furnace cover is an important part of the wave soldering equipment. It covers the solder tank and is usually made of high temperature resistant and corrosion resistant materials.

Features
1. Heat transfer and heat preservation: The tin furnace cover can effectively seal the solder tank, prevent heat loss, and provide good heat preservation effect to ensure that the solder maintains a suitable temperature during the entire welding process.

2. Safety protection: The cover can effectively protect the operator from the heat and splash risk of high-temperature solder, ensuring the safety of the operator.

3. Environmental protection: The cover can reduce the volatilization and odor of solder, and reduce the impact of gases and odors generated by welding in the working environment on employee health.

4. Prevent oxidation: Solder is easily oxidized at high temperatures. The cover can effectively reduce the time the solder is exposed to the air, reduce the possibility of oxidation, and improve the welding quality.

5. Easy to operate: The cover usually adopts a lightweight design and is easy to open and close, making it easier for the operator to observe and adjust the welding process.

6. Durability: Since the cover needs to withstand high temperature environments and frequent opening and closing operations for a long time, it needs to have good durability and stability to ensure long-term reliable operation.

These components work together to make the welding process go smoothly and the welding quality is guaranteed. A good nozzle design can ensure uniform spraying of solder, the cover can provide necessary environmental protection and safety protection, and the diversion groove can effectively guide the solder to flow to the welding area to ensure the stability of the welding effect.
