High Precision Double Platform Dual Y Working Platform Fast 1.0-1.5s Solder Time

High Precision Double Platform Dual Y Working Platform Fast 1.0-1.5s Solder Time

Product Description:

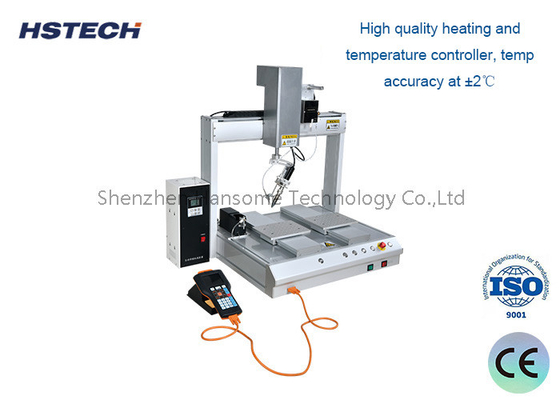

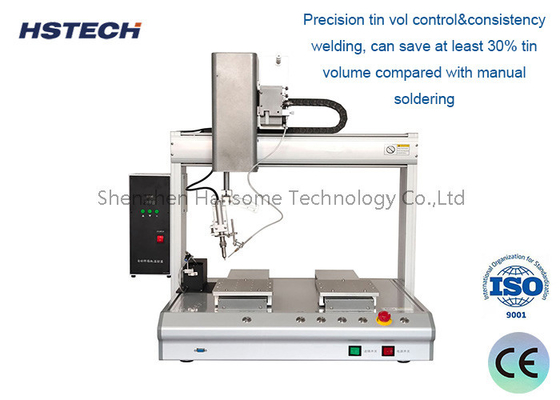

The Automatic Soldering Robot is a cutting-edge, industrial-grade solution designed to meet the high demands of modern manufacturing processes. This state-of-the-art robot is an ideal choice for businesses looking to enhance precision, efficiency, and consistency in their soldering tasks. With its robust and feature-rich design, it is well-suited for a wide range of applications, from electronics assembly to automotive manufacturing.

At the heart of the Automatic Soldering Robot is its advanced Double Y Working Platform, which provides exceptional stability and flexibility. The dual-axis system allows for precise movement and positioning of the soldering head, ensuring accurate solder joints and reduced waste. This platform is perfect for complex soldering tasks that require high levels of precision and repeatability.

The robot is equipped with a Dual Work Table setup, which enables it to handle multiple tasks simultaneously or to work on larger circuit boards without the need for constant reconfiguration. This feature not only increases throughput but also maximizes the utilization of workspace. The tables are designed to accommodate a wide variety of workpieces, making the robot highly versatile and adaptable to different production needs.

The Automatic Soldering Robot operates on a safe and efficient DC 24V output voltage. This low voltage system reduces the risk of electrical hazards and is designed to work seamlessly with standard industrial power supplies. The use of DC power also contributes to the robot's precise control and smooth operation, providing consistent soldering results across the board.

With a generous Working Area of 300x300mm, the Automatic Soldering Robot can accommodate a variety of component sizes and configurations. This ample space is ideal for handling multiple components or larger assemblies, giving users the flexibility to work on diverse projects without compromising on quality or speed.

Despite its powerful performance, the Automatic Soldering Robot is designed to be energy-efficient, with a Power Consumption of just 100W. This makes it not only an environmentally conscious choice but also cost-effective in terms of long-term operational expenses. The robot's energy efficiency does not come at the cost of performance, ensuring that users can maintain high production rates while keeping energy costs low.

The Automatic Soldering Robot features a Single Head that has been precision-engineered to deliver accurate and consistent soldering. This single-head design focuses on providing superior control and stability, which is crucial for achieving the highest quality solder joints. The head is also designed for easy maintenance and quick replacement, minimizing downtime and maintaining productivity.

One of the standout features of the Automatic Soldering Robot is its Smoke Purification Filter System. This system is designed to capture and eliminate smoke and fumes generated during the soldering process, ensuring a clean and safe working environment. The filter system not only protects the health of operators but also helps to maintain the longevity of the machine components by preventing the accumulation of contaminants.

In conclusion, the Automatic Soldering Robot is an exemplary tool for any business seeking to upgrade its soldering capabilities. Its Double Y Working Platform, Dual Work Table, efficient DC 24V output voltage, spacious 300x300mm working area, and energy-conscious 100W power consumption make it a top-of-the-line choice for precision soldering tasks. The addition of a Single Head and an advanced Smoke Purification Filter System further enhances its appeal, making it a smart investment for those looking to improve productivity, quality, and workplace safety in their soldering operations.

Features:

• Product Name: Automatic Soldering Robot
• External Communication: RS232
• Moving Range: 400x400x100mm
• System: Manual Programming, Fast Switching
• Condition: Brand New
• Air Pressure: 4-6bar
• Double platform
• 5Axis movement capability
• 5Axis precision soldering

Technical Parameters:

Applications:

The Automatic Soldering Robot , model number HS-S5331R , originating from China , is a sophisticated piece of equipment designed for precision soldering tasks. This brand-new robot is equipped with a Single Head, Single Head, Double platform configuration, which enables it to handle complex soldering projects with ease. Its dimensions of 720*640*1040mm make it a compact yet powerful solution for a variety of industrial applications.

One of the primary application scenarios for this soldering robot is in the assembly of printed circuit boards (PCBs) for consumer electronics. Manufacturers can utilize this machine to efficiently solder components onto boards with a consistent solder time of 1.0 ~ 1.5s / Point . The robot's precise movement range of 400x400x100mm allows it to work on a diverse range of PCB sizes and complexities.

The Automatic Soldering Robot is also highly suitable for use in the automotive industry, where electronic components are becoming increasingly prevalent. Car manufacturers and suppliers can take advantage of the robot's quick and precise soldering capabilities to produce high-quality control units, sensors, and other critical components.

Additionally, the machine's Manual Programming, Fast Switching system makes it an excellent choice for small to medium production runs where flexibility and a quick changeover between projects are essential. Its double platform design allows one part to be loaded or unloaded while the other is being soldered, greatly increasing throughput and efficiency.

Another key application occasion for the HS-S5331R model is in the production of medical devices. In this highly regulated industry, the precision and reliability of the Automatic Soldering Robot ensure that electronic components meet stringent quality standards, which is critical for devices that are essential to patient care and well-being.

Overall, the HS-S5331R Automatic Soldering Robot is a versatile tool that can be integrated into various production lines. Its robust design, coupled with its efficient soldering capabilities, makes it an invaluable asset for any electronics manufacturer looking to optimize their soldering process and ensure high-quality results.

Customization:

Brand Name: Automatic Soldering Robot

Model Number: HS-S5331R

Place of Origin: China

System: Manual Programming, Fast Switching

Solder Time: 1.0 ~ 1.5s / Point

Voltage: 110V/220V

Platform: Double Y Working Platform - featuring a double platform for efficient soldering operations

External Communication: RS232

Our Automatic Soldering Robot is equipped with a state-of-the-art Smoke Purification Filter System to ensure a clean working environment by effectively removing fumes and smoke generated during the soldering process.

Support and Services:

Our Automatic Soldering Robot is designed to deliver precision, efficiency, and reliability to your production line. To ensure that you achieve the best performance from your soldering robot, we offer a comprehensive range of technical support and services. These services are crafted to provide you with the expertise and assistance necessary to maintain optimal operation, troubleshoot issues, and integrate our technology seamlessly into your manufacturing processes.

Our technical support includes access to our knowledgeable support team, who are well-versed in all aspects of the Automatic Soldering Robot's functionality and operation. They can assist you with setup, programming, optimization, and diagnostics. Whether you're facing a hardware or software issue, our team is on hand to provide you with prompt and effective solutions.

We also offer a variety of services to enhance your experience with our Automatic Soldering Robot. This includes regular maintenance checks, software updates, and training programs for your staff. Our training ensures that your team is fully equipped to operate and maintain the robot, leading to increased productivity and reduced downtime.

Should your robot require repair or servicing, our skilled technicians are available to provide on-site assistance, ensuring minimal disruption to your operations. We use only genuine replacement parts to maintain the integrity and performance of your soldering robot.

To continuously support your evolving needs, we also provide consultation services for process improvement and expansion. Our experts can help you adapt the robot's capabilities to new tasks, ensuring that your investment continues to meet your business requirements as they grow and change.

With our dedicated technical support and services, you can expect a seamless and productive experience with our Automatic Soldering Robot. We are committed to helping you achieve the highest levels of efficiency and quality in your soldering operations.

Packing and Shipping:

Product Packaging for the Automatic Soldering Robot:
The Automatic Soldering Robot is securely encased in a custom-fitted, high-density foam insert, ensuring maximum protection during transit. This foam is then placed inside a sturdy, industrial-grade cardboard box that is resistant to impact and compression. The outer packaging includes shock indicator labels to monitor handling quality and is sealed with heavy-duty packing tape. The product package also contains a user manual, warranty information, and a set of basic tools for installation. For additional security, the box is strapped with durable bands to maintain structural integrity.

Shipping Information for the Automatic Soldering Robot:
The Automatic Soldering Robot is shipped via a trusted freight carrier to ensure safe and timely delivery. Shipping options include standard ground shipping, expedited shipping, and, for international orders, global express services. The package is fully insured against loss or damage, and a tracking number is provided so that the customer can monitor the shipment's progress. Upon dispatch, customers will receive an email with shipping details and estimated delivery date. It is imperative that the customer inspects the package for any signs of damage upon arrival and reports it to the carrier and our customer service team within 24 hours.

Images:
