| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | AIS300 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Inline THT DIP AOI After Wave Soldering | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.3 - 5mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Total Power: | 2600W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Mounting Accuracy: | ±0.01mm |
| Type: | Automatic | Weight: | 30KG |

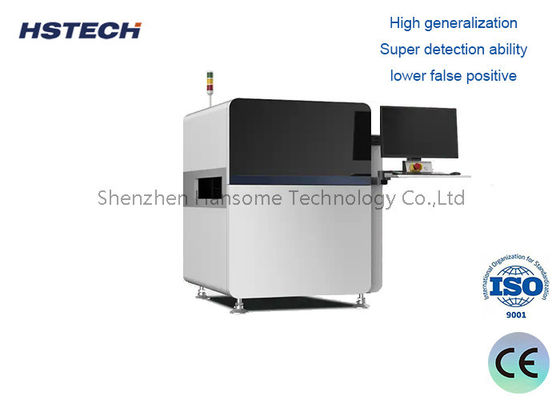

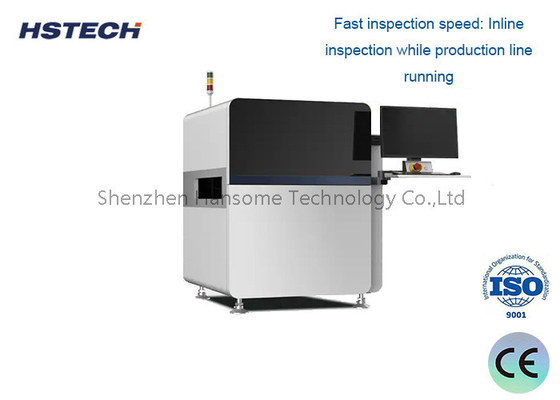

Quick Installation Fast Inspection Speed Remote Assistant Inline THT DIP AOI Before Wave Soldering
Specification
| Model | AIS300 | AIS301 |
| PCB Size | 50x50mm~430x380mm | 50x50mm~350x350mm |
| Thickness | 0.3~7.0mm | |
| Warping extent | <4mm | |
| Component height | Top 150mm, bottom 25mm | |
| Camera | 5MP,color,CCD | |
| Light source | RGB | |
| FOV | 45*37mm | |
| Resolution | 20um | |
| Inspection | ||
| Mounting components defect | Missing,rolling,offset,damage,skew,redundant,dirty. | |
| Solder defect | Excess,insufficient,bridge,no foot,missing solder,non-wetting. | |
| Other function | Bar-code,QR cod,OCR | |
| Speed | 0.23sec/fov | 0.25sec/fov |
| Software/Hardware | ||
| Operation system | Ubuntu 14.04 LTD 64bit | |
| Function | Remote control, Gerber file importing, training tool for new models | |
| Industrial PC | CPU intel i5,Independent Graphics Card,12G DDR,256SSD | |
| Display | 22 inch FHD LCD | |
| Motion | High accuracy linear actuator | |
| Power supply | AC220V,1KW | |
| Air pressure | >0.5Mpa | |
| Dimension(L*H*W) | 1100*1630*1350mm | 1100*1280*1300mm |
| Net Weight | 800kg | 700kg |
Features
A, Core algorithm—— Convolutional Neural Network Algorithm
Application and Innovation in industry
Human-like inspection
Better compatibility
Training algorithm model of super large sample set
High generalization
Super detection ability, lower false positive
Supporting user self-training model
B, High wear resistance
C, Large inspection area and high compatibility
D, High inspection rate and low false positive rate.
E, Marble base, more stable.
F, Dual XY linear actuators, high speed, high accuracy
Application
This inline THT AOI used after wave soldering machine in DIP production line,it used for Correcting the wrong units, which can reduce repairs and time. The passing rate can be improved efficiently. This machine widely used for inspecting TV mainboard,PC mainboard,power board,industrial control board,Mini household electronic appliances and other PCBAs.
