| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | AIS203-12C |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | Inline THT DIP AOI Before Wave Soldering | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Aluminum Alloy | Condition: | New |
| Thickness: | 0.3 - 5mm | Signal: | SMEMA |
| Application: | Electronic Assembly | Color: | Silver |
| Control System: | PLC | OEM/ODM: | Available |
| Total Power: | 2600W | Power Supply: | AC220V |
| Air Pressure: | 4-6bar | Mounting Accuracy: | ±0.01mm |
| Type: | Automatic | Weight: | 30KG |

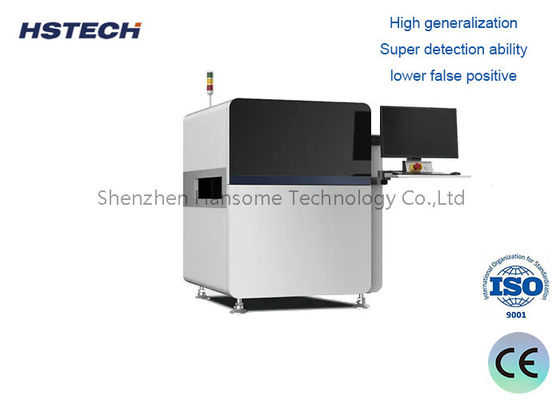

Quick Installation Fast Inspection Speed Remote Assistant Inline THT DIP AOI Before Wave Soldering
Specification
| Model | AIS203-12C | AIS203-29C |
| PCB Size | 50x50mm~400x300mm | 50x50mm~520x380mm |
| Camera | 12MP color | 29MP color |
| Light source | White | W + strip light source on four sides |
| FOV | 400*300mm | 520*380mm |
| Resolution | 90um | 80um |
| Communication method | SMEMA | SMEMA |
| CPU | Intel i5 CPU | Intel i5 CPU |
| Display card | Nvida Independent GPU Accelerator Card | |
| Storage | 8GDDR,256G SSD+2T Mechanical HD | |
| Power Supply | AC 220,200W | |
| Dimension(L*H*W) | 715*(1315-1700)*(760-1210)mm | |
| Net Weight | 100kg | |
Features
A, Quick installation: It can be installed within an hour ,inline inspection. No need to modify original production line, height and width adjustable.
B, Intelligent Algorithms: Deep Learning Based on Neural Networks ,traditional algorithms: color, edge, feature detection and contrast algorithms, etc. OCR Character Recognition Algorithms.

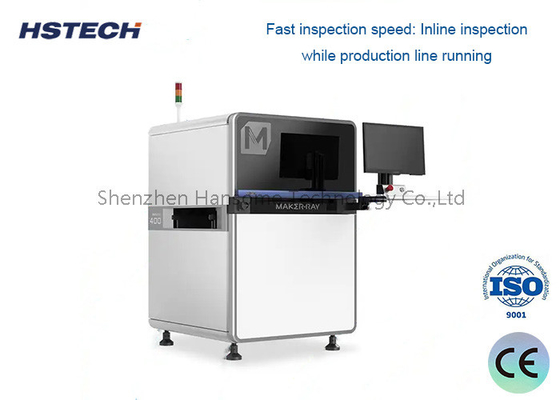

C, Fast inspection speed: Inline inspection while production line running. Inspection time is not affected by production line speed, result will be given out the result once the board passes through 3 photos per second.
D, Remote assistant: Remote debugging, control and centralized management.
Help to reduce work interruption and improve work efficiency,upgrade software remotely,remote support,rapid response for maintenance.
E, Quick programming:Intelligent algorithm, frame selection components automatically (capacitor, diode, socket) (after training: crystal oscillator, mung bean, inductance, etc.)
F, Personality testing, strong applicability:
Supporting Multi panel inspection,Supporting Mixed Board inspection ,Supporting Mixture inspection ,Support Rotation Recognition of Arbitrary Angle and Position
G, Powerful SPC, comprehensive data:
Can read Bar Code automatically;complete data record : including overall statistical data, and all detection information of each detection board, one-click to export, easy to trace, data can be effectively docked with MES system.
Application
This inline THT AOI used before wave soldering machine in DIP production line,it used for Correcting the wrong units, which can reduce repairs and time. The passing rate can be improved efficiently. This machine widely used for inspecting TV mainboard,PC mainboard,power board,industrial control board,Mini household electronic appliances and other PCBAs.
