| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-CU390 |
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 15~20 work days |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Product Name: | 90 Degree PCB Magazine Unloader | Power Supply: | AC110V/220V,50/60Hz |
|---|---|---|---|
| Air Pressure: | 4-6 Bar | PCB Size: | 50*50~530*460mm |
| Pitch Selection: | 10-40mm | Conveyor Speed: | 0.5-20M/min Or Customized |
| Transport Belt: | Black Transporting Belt | Warranty: | 1 Year |

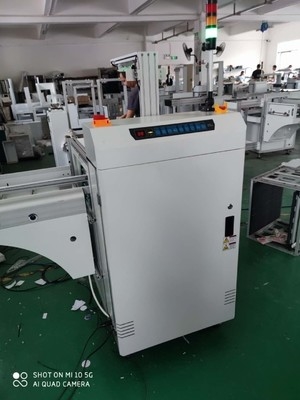

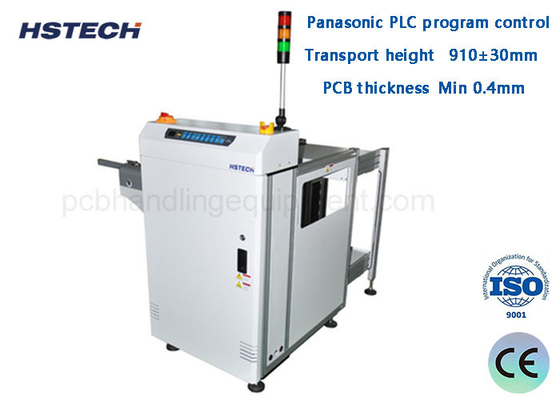

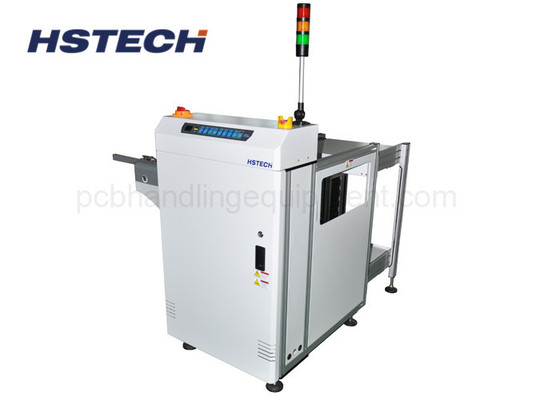

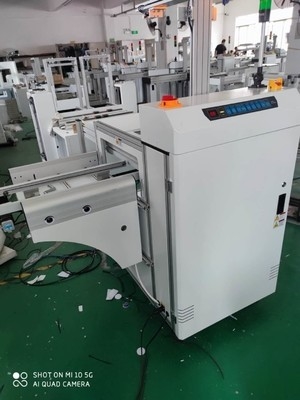

LED Button Control Mode With 3 Lolor Light Display 40mm Pitch 20M/Min 90 Degree PCB Magazine Unloader
Application
This unit is 90 degree PCB magazine unloader for SMT production line, used for automatic collecting PCBs in 90 degree right angle direction to save the length of the SMT line, the machine has a specially designed pusher which can push the PCBs from the transporting rail into the magazine racks.
Features
1, 90 degree right angle PCB unloading, save SMT production length.
2, Using mc, which wont impact the production throughout capacity.
3, LED button control mode with 3 lolor light display.
4, Thickness 1.3mm, diameter 3mm edge flat ESD belt.
5, Stainless steel and aluminum profile machine structure, stable and easy for maintenance.
6, PLC control.
7, Smooth and parallel width adjustment with hand crank.
8, 3 magazines capacity: Top 1+ Down 2.
9, Top and bottom pneumatic clamps to secure magazine rack.
10, No PCB breakage guaranty during loading &unloading.
11, SMEMA compatible.
Specification
| Product name | 90 degree PCB Magazine unloader |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| Power supply | 220V,50/60Hz,±10% |
| Air pressure | 4-6bar |
| PCB thickness | Min 0.4mm |
| Magazine qty | Upper side:1 pc,bottom side: 1 pc |
| Conveyor speed | 0.5-20M/min or customized |
| Signal | SMEMA |
| Model | HS-CU250 | HS-CU330 | HS-CU390 | HS-CU460 |
| Efficient PCB length | 50*50~350*250mm | 50*50~455*330mm | 50*50~530*390mm | 50*50~530*460mm |
| Machine dimension | 1100*1200*1200mm | 1310*1360*1200mm | 1430*1480*1200mm | 1430*1620*1200mm |
| Magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm | 535*530*570mm |
| Weight | 140kg | 200kg | 260kg | 300kg |
