High Quality SMD Component Counter For Conductive Non-Conductive Carrier Tape

High Quality SMD Component Counter For Conductive Non-Conductive Carrier Tape

  • High Quality SMD Component Counter For Conductive Non-Conductive Carrier Tape
  • High Quality SMD Component Counter For Conductive Non-Conductive Carrier Tape
  • High Quality SMD Component Counter For Conductive Non-Conductive Carrier Tape
  • High Quality SMD Component Counter For Conductive Non-Conductive Carrier Tape
High Quality SMD Component Counter For Conductive Non-Conductive Carrier Tape
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: CT-01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Contact Now
Detailed Product Description
Product Name: Carrier Tape Warranty: 1 Year
Material: PC/PS/ABS If ESD: Yes
Cover Tape: Included If Customer Request Signal: SMEMA
Application: Electronic Assembly Control System: PLC
OEM/ODM: Available Type: Automatic



High Quality SMD Component Counter For Conductive Non-Conductive Carrier Tape



We supply high quality embossed carrier tapes and custom carrier tapes according to customers's demand.
If you need a carrier tape to allow parts to be placed and sealed to go onto a pick and place system, then we have options for you.


Introduction

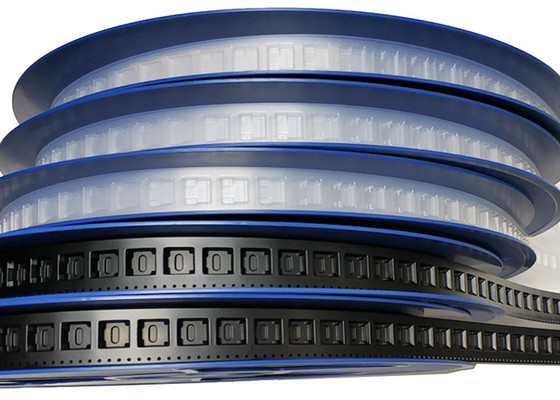

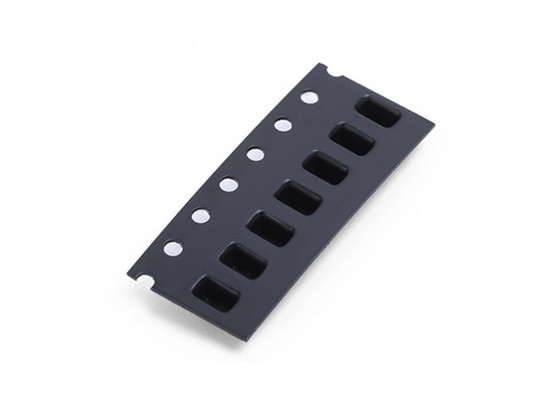

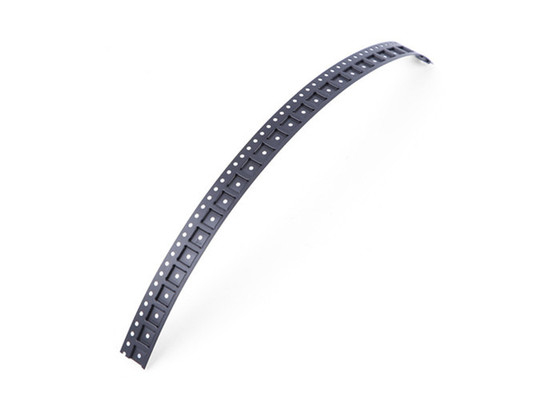

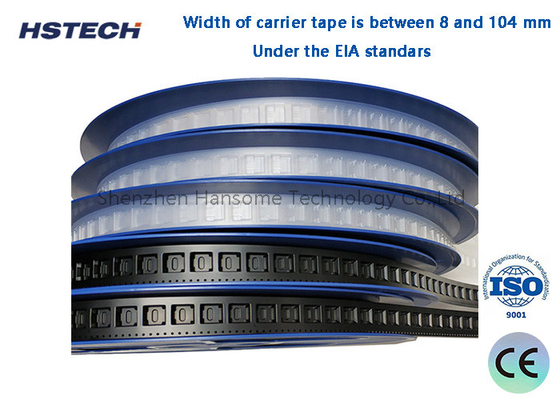

The Carrier tape has pockets that are shaped to match the contours of the component to be carried. The width of carrier tape is between 8 and 104 mm,which is under the EIA standars, we also can custom for customers. In the carrier tape, there are sprocket holes down both sides of the tape, round with a radius of approximately 1.5 mm on one side and oval with a "radius" of 0.75 mm on the other. These holes enable precision presentation of the pocket to the pick and place unit.



Carrier tape size and it matched cover tape



Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.



Carrier Tape(mm) 8 12 16 24 32 44 56 72 88 104
Cover Tape(mm) 5.4 9.3 13.3 21.3 25.5 37.5 49.5 65.5 81.5 97.5




Application



The embossed carrier tapes are widely used in the surface packaging, carrying and transmission of the surface mounting equipments,for example, the mini PCB , IC ,LED chip, connectors, diodes, dynatrons, resistors, conductors, capacitors, fuses, switches, relays, resonators, radome, socket component,etc.



Reel Packing Embossed Carrier Tape Standard Size For Components Collecting / Storage 0

Reel Packing Embossed Carrier Tape Standard Size For Components Collecting / Storage 1

About Packaging
High Quality SMD Component Counter For Conductive Non-Conductive Carrier Tape 2
High Quality SMD Component Counter For Conductive Non-Conductive Carrier Tape 3
High Quality SMD Component Counter For Conductive Non-Conductive Carrier Tape 4
