Place of Origin: | China |
Brand Name: | HSTECH |
Certification: | CE |
Model Number: | HS-COU2000EX |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Wooden package |
Delivery Time: | 7~9 work days |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 100 sets per month |
Product Name: | SMD Component Counter | Warranty: | 1 Year |
---|---|---|---|
Control: | Touch Screen | PLC: | MITSUBISHI |
Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
Motor: | Panasonic | Condition: | New |
Signal: | SMEMA | Application: | Electronic Assembly |
Control System: | PLC | OEM/ODM: | Available |
Power Consumption: | 200W | Power Supply: | AC220V |
Type: | Automatic |

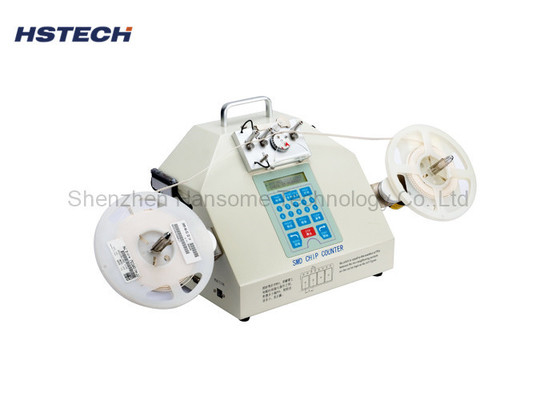

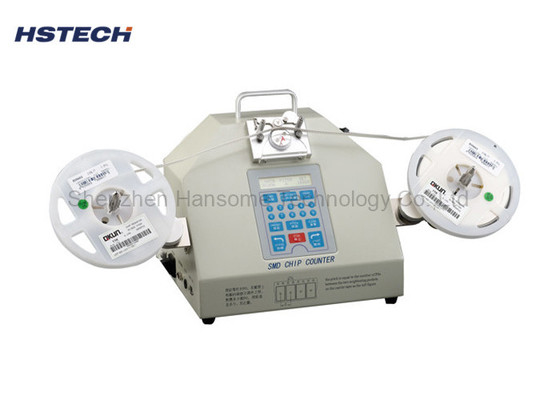

Full Automactic Counting Easy Operate Drafting LCD Screen SMD Component Counter
Technical Details
Model | HS-COU2000EX | |||
Voltage | AC220, 50/60Hz | |||
Power Supply | 25W | |||
Motor Brand | Panosonic | |||
Counting Range | “-59999~59999” | |||
Pitch Size | 1/2,1,2,3,4,5,6,7,8,9,10,11,12,13,14mm | |||
Width of tape | 8,12,16,24,32,44,56,72,88 m | |||
Plastic reel size | 7-13 inch | |||
Universal Products | Suitable for all tape components | |||
Product Size | 450*240*280mm | |||
Package size | 610*305*350mm | |||
Gross Weight | 9.5kg |

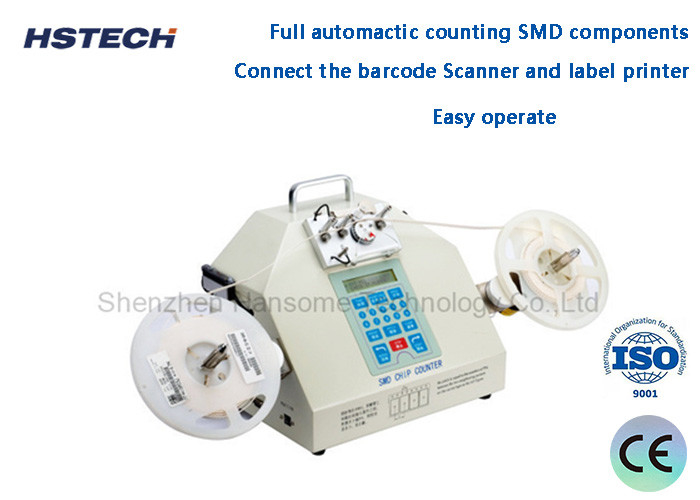

Features
1, Full automactic counting SMD components ,high accuracy count.
2, Can connect the barcode Scanner and label printer,
3, Easy operate,designed to prevent tape dropping,minimizing risk of damage to tapes.
4, Count forward and reverse ,double-check feature ensures accuracy,built-in memory allows you to preset count quantity.

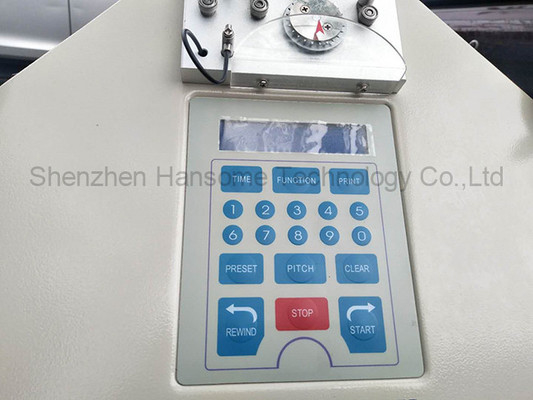

5, The counter use drafting LCD screen. Small size, light weight, easy to carry
6, Use patent reflector,humanized operation platform.
7, Install bar code , convenience electronic component management.
8, Optical fiber sensor detect leak ,motor will stop working when detected leak.
