LED Button 250mm 330mm PCB Loader Equipment PLC Control

LED Button 250mm 330mm PCB Loader Equipment PLC Control
LED Button 250mm 330mm PCB Loader Equipment PLC Control LED Button 250mm 330mm PCB Loader Equipment PLC Control LED Button 250mm 330mm PCB Loader Equipment PLC Control

Large Image :  LED Button 250mm 330mm PCB Loader Equipment PLC Control

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-LD390
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 15~20 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Detailed Product Description
Product Name: 250mm / 330mm PCB Loader Equipment Other Name: Magazine Loader
Transport Height: 920±20mm PCB Loading Time: Approx 6 Seconds
Magazine Replace Time: Approx 30 Seconds Transportation Direction: L~R, Or R~L
Operation: Front Operation PCB Thickness: Min 0.4mm
High Light:

LED Button PCB Loader Equipment

,

330mm PCB Loader Equipment

,

PLC Control PCB Magazine Loader



250mm / 330mm PCB Loader Equipment with Mitsubishi PLC control







Features



  • 250mm/330mm/390mm/460mm width available.
  • Total 3 magaiznes, top side 1 magazine, buttom 2 magazines.
  • LED button control, optional touch screen control.
  • Stability stainless steel structure.
  • Smooth and parallel width adjustment.
  • No PCB breakage guaranty during loading &unloading.
  • CE listed, suitable for Europe market.





Specification



Model HS-LD390
Product name PCB Loader
Transport height 920±20mm
PCB loading time Approx 6 seconds
Magazine replace time Approx 30 seconds
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side(or specify)
Power supply 220V,50/60Hz,±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side:1 pc,bottom side: 2 pc
Pitch selection 1-4(10mm pitch)
Conveyor speed 0.5-20M/min or customized
Signal SMEMA



Model selection



Model HS-LD250 HS-LD330 HS-LD390 HS-LD460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine Size 1400*800*1200mm 1650*880*1200mm 1800*940*1200mm 1800*1010*1200mm
Magazine size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 180kg 220kg 260kg





Application



This machine is a PCB loading machine, it used in the start of SMT production line, the machine push the PCB from magazine racks and transporting to the downstream machine of the production line.





About Us:



Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.




HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.

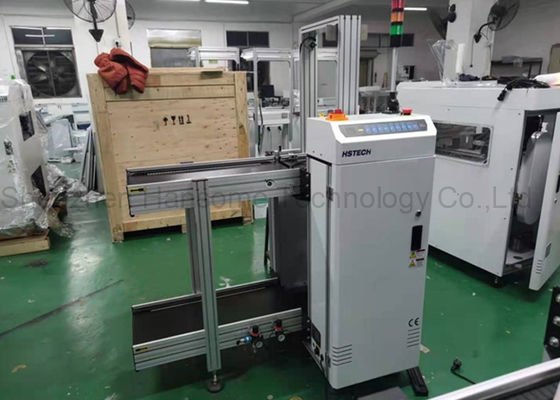

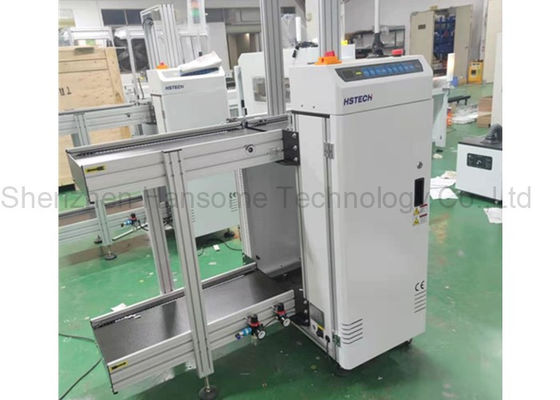

LED Button 250mm 330mm PCB Loader Equipment PLC Control 0LED Button 250mm 330mm PCB Loader Equipment PLC Control 1

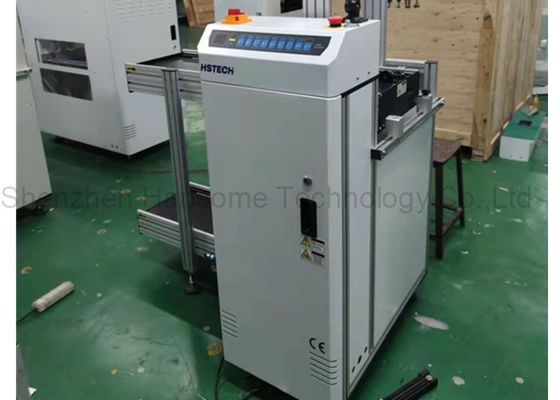

LED Button 250mm 330mm PCB Loader Equipment PLC Control 2
