8 Channels K Type 100mW RS232 USB Thermal Profiler 3.6VDC

8 Channels K Type 100mW RS232 USB Thermal Profiler 3.6VDC

  • 8 Channels K Type 100mW RS232 USB Thermal Profiler 3.6VDC
  • 8 Channels K Type 100mW RS232 USB Thermal Profiler 3.6VDC
8 Channels K Type 100mW RS232 USB Thermal Profiler 3.6VDC
Product Details:
Place of Origin: China
Brand Name: Chinese brand
Certification: CE
Model Number: TC-60
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Special design aluminum box
Delivery Time: 3~5days
Payment Terms: T/T, Western Union
Supply Ability: 500pcs per month
Contact Now
Detailed Product Description
Product Name: Thermal Profile Channels: 4Channels, 6 Channels, 8 Channels
Accuracy: ± 0.5˚C Resolution: 0.1˚C
Interal Operating Temp: 0˚C~85˚C Sample Rate: 0.1 To 10 Readings/sec
Record Mode: Monitor/record Connection Mode: RS232/USB
High Light:

RS232 USB Thermal Profiler

,

100mW USB Thermal Profiler

,

3.6VDC Thermal Break Profile

6 Channels 8 Channels K type RS232/USB Connection Port Thermal Profiler



Introduction

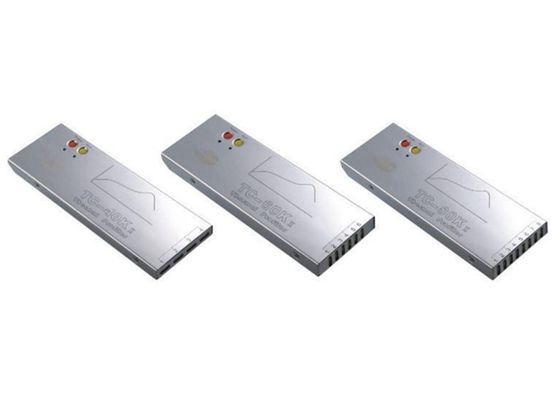

This brand thermal Profiler is a high quality,Chinese brand thermal profiler, with 4 channels, 6 channels, and 8 channels options.



Standard Composition

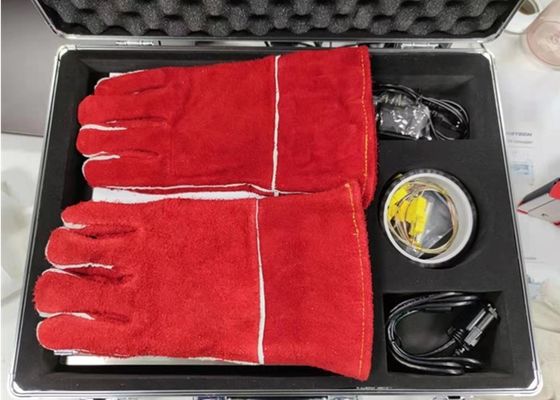

1. Thermal profiler 2. Insulation box

3. Temperature test line 4. Data download line

5. Charger 6. Hi-temp adhesive tape

7. Software CD 8. “+” screwdriver 9. Tweezers

10. Insulated gloves 11.Solder wire

12. Scissors 13. Instrument box

14. User Manual 15. Acceptance Certificate

9, Full Original Package, with original Thermal Couples, Protective Shield, Software, etc



Specifications



Model TC-60KII
Thermal couple K-type thermal couple

Sampling interval

0.05sec---600sec Set with software

Internal Operating Temp. 0˚C to 85˚C
Record mode

120000point/channel, Can record 256 sets profile

Resolution 0.1℃

Temperature measuring range

0—600℃ OR 0—1200℃

Temperature measuring accuracy

±1.0℃

Total power

≤100mW

Operating voltage

3.6VDC, rechargeable battery

Insulation box

252(L)×88(W)×30(H)mm

Start Mode

Manual, specified time or specified temperature

Recode mode

RS232/USB

Dimension

208(L)×75(W)×15(H)mm

208(L)×75(W)×19(H)mm
