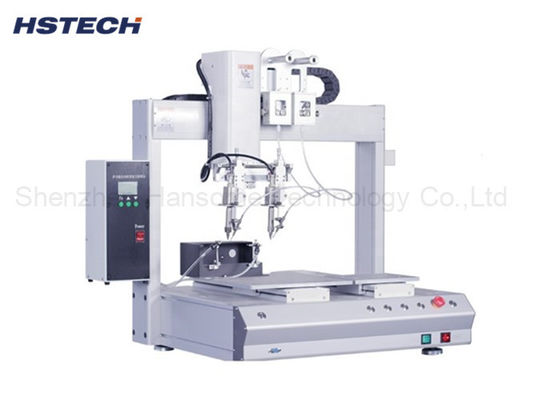

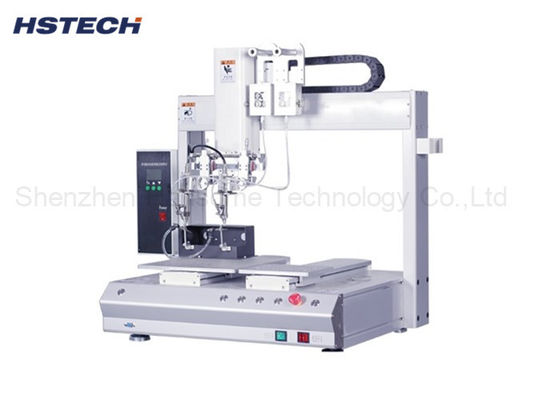

Benchtop Type Automatic Spot Drag Soldering Machine Processing Data Iron Tin

Benchtop Type Automatic Spot Drag Soldering Machine Processing Data Iron Tin
Benchtop Type Automatic Spot Drag Soldering Machine Processing Data Iron Tin

Large Image :  Benchtop Type Automatic Spot Drag Soldering Machine Processing Data Iron Tin

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-S5331R
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5~7 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month
Detailed Product Description
Product Name: Tabletop Soldering Robot Other Name: Robotic Soldering Machine
Working Station: Dual Working Station Soldering Head: Single Tip
Rotation: 360degree System: Manual Programming, Fast Swtiching
High Light:

auto soldering machine

,

automated soldering equipment

Benchtop Type Processing Data Iron Tin Automatic Spot Drag Soldering Machine​



Introduction



Automatic benchtop soldering machine, it used for instead of the traditional manual soldering. By make customized fixtures to fix the products, the temperature controller heating the solder tip, solder wire automatic feeding, the machine will automatic soldering the products according to the setted programs.



Features



1, Stable structure, high precision soldering.

2, Benchtop/Desktop type, easy to moving and maintenance.

3, Use each box to set the programs, programs can storage and import directly.

4, The soldering tip/iron available for 360degree rotation.

5, Traveling distance 500*300*300*100mm.

6, Automatic solder wire feeding.

7, Available for spot, drag, circle, curve and other inregular soldering pcb panels.

8, Double soldering tip, double working station, high efficiency in circular working, keep the machine working all the time.

9, Precision tin vol control&consistency welding, can save at least 30% tin volume compared with manual soldering.

10, High quality heating and temperature controller, temp accuracy at ±2℃.

11, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.

12, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.



Specification



Model HS-S5331R
Voltage AC110V/220V,50/60Hz
X/Y1/Y2/Z working range 500*300*300*100mm
R axis 360 degree
Materials High end aluminum
Solder wire diameter 0.6~1.0mm
X/Y1/Y2/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Manual programmin with teach pendant
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
 Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Document support CAD/dwg format
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 85kg
Machine dimension

680*585*800mm



Application



The automatic soldering machine is mostly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering. It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields. Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality.Suitable for automotive electronics, digital, electronic products, LCD, circuit board and other production industries, connectors, RJ / network transformers, cable, FPCB welding, COF welding, computer motherboards, CABLE, speakers and motors Quality welding industry.



Benchtop Type Automatic Spot Drag Soldering Machine Processing Data Iron Tin 0

Benchtop Type Automatic Spot Drag Soldering Machine Processing Data Iron Tin 1



Benchtop Type Automatic Spot Drag Soldering Machine Processing Data Iron Tin 2

Benchtop Type Automatic Spot Drag Soldering Machine Processing Data Iron Tin 3
