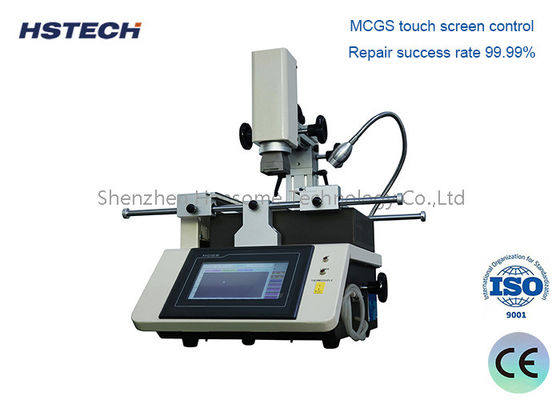

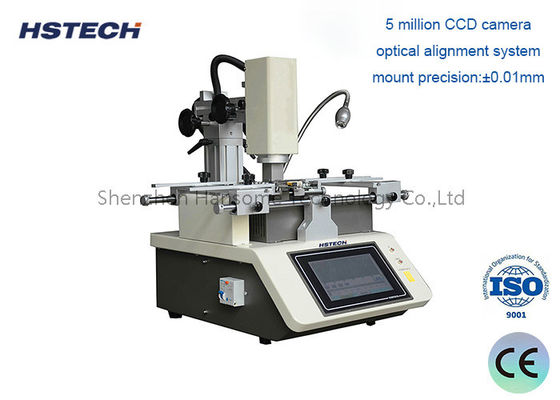

Manual BGA Rework Station 3 Heating Zones Industrial Touch Screen CE Certified PCB Handling Equipment

The Manual BGA Rework Station is a highly precise and versatile rework solution designed for the efficient removal, placement, and soldering of Ball Grid Array (BGA) and other surface-mount components. Engineered for both professional repair shops and R&D laboratories, this equipment combines advanced thermal management with user-friendly manual operation. Whether you are repairing laptop motherboards, server boards, or LED panels, this rework station ensures high-yield soldering results through independent multi-zone heating, precise optical alignment, and customizable temperature profiles.

• Exceptional repair success rate exceeding 99% for BGA rework operations
• Industrial-grade touch screen interface for precise control
• Independent 3 heating zones with hot air heating and infrared preheat (±3℃ accuracy)
• CE certified with double over-temperature protection for safety
• Versatile functionality: solder, desolder, mount, pick and replace chips
• 360-degree rotatable hot air nozzle for optimal positioning
• Advanced temperature control with eight segments for rising temperature, constant time, and temperature slope
• High-accuracy K-type thermocouple close-loop control system
• External sensor for precise temperature detection and real-time curve analysis
• Compatible with BGA, VGA, CCGA, QFN, CSP, LGA, SMD, and other components

This manual BGA rework station is widely applicable across various electronics manufacturing and repair sectors:

• Computer & Server Repair: Motherboard rework for laptops, desktops, and large-scale server boards.
• LED Lighting Industry: Desoldering and resoldering of LED chips on aluminum substrates.
• Consumer Electronics: Repair of gaming consoles, mobile devices, and communication equipment.
• Automotive Electronics: Rework of ECU modules and automotive control boards.
• Component Types: Supports BGA, PBGA, CSP, QFN, LGA, and Micro SMD packages.

• Cost-Effective Precision: Delivers high-end rework capabilities at a competitive price point, maximizing ROI for small-to-medium repair businesses.
• User-Friendly Operation: Intuitive touch screen interface with multi-language support makes it easy for operators to learn and execute complex rework tasks without extensive training.
• Robust Build Quality: Constructed with industrial-grade components and precision linear guides to ensure long-term durability and consistent performance.
• Versatile Customization: We offer various configurations, including different optical systems and heating powers, to match your specific production needs.
• Comprehensive Support: Backed by detailed operation manuals, video tutorials, and responsive technical support to ensure your equipment runs smoothly.

Achieve flawless BGA rework with confidence. Our Manual BGA Rework Station provides the perfect balance of precision, reliability, and affordability. Contact us today to request a quotation, product video, or technical consultation. Let us help you optimize your repair workflow and deliver superior quality results.
