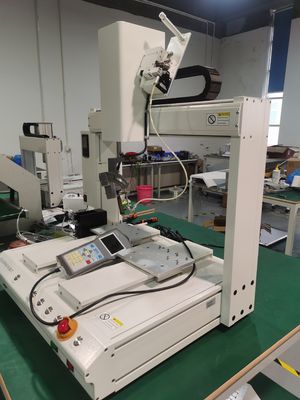

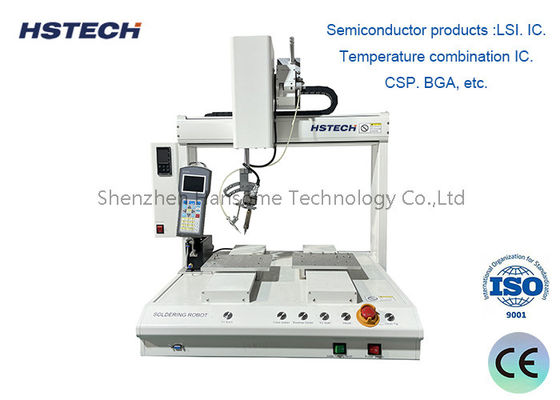

5 Axis Automatic Soldering Robot PCB Depaneling Equipment Equipped With Double Y Working Platform

The 5 Axis Automatic Soldering Robot is an advanced, high-precision automated solution designed to replace traditional manual soldering in modern production lines. Engineered for superior flexibility and accuracy, this automatic soldering machine features five degrees of freedom, allowing the soldering iron to reach complex geometries and maintain optimal angles for flawless joints. Whether for intricate PCB assemblies or large structural components, our soldering robot ensures consistent quality, significantly boosts production throughput, and reduces operational costs.

• Product Name: Automatic Soldering Robot
• Solder Time: 1.0 ~ 1.5s / Point
• Torque: 0.03-45kgf/cm
• Power Consumption: 100W
• Work Table: Dual (Double platform)
• Moving Range: 400x400x100mm
• Single Head for precision soldering
• Smoke purification filter system to ensure a clean working environment

The high precision 5 Axis Automatic Soldering Robot is widely used in precision soldering and assembly processes of various electronic industries, covering most automated production scenarios of electronic manufacturing:

• PCB and PCBA Circuit Board Soldering: Suitable for precision soldering of rigid PCB, flexible FPC, high density circuit boards, micro solder pads and multi layer circuit boards.
• Automotive Electronic Components: Applied to soldering of automotive sensors, connectors, control modules and wire harness terminals, meeting high stability requirements of automotive grade products.
• Consumer Electronics Assembly: Perfect for soldering of mobile phone modules, earphone accessories, tablet components, smart watches and small digital products.
• Communication Electronic Products: Suitable for RJ45 interfaces, HDMI connectors, signal terminals and communication module precision soldering processes.
• Smart Home and Electrical Appliances: Used for soldering of smart control boards, sensor modules and electrical circuit accessories, ensuring long term stable operation of products.
• Medical and Precision Electronic Devices: Meet the high precision and high reliability soldering requirements of medical electronic components and precision instrument circuit boards.

• Boost Productivity: Achieve 2x to 4x higher soldering efficiency compared to manual labor.
• Reduce Labor Dependency: Minimize reliance on skilled soldering operators, solving recruitment challenges and lowering labor costs by up to 30%.
• Guarantee Quality Consistency: Eliminate human error and fatigue, ensuring a stable first-pass yield rate of over 99.5%.
• Save Material Costs: Precise solder wire control reduces solder consumption and minimizes rework expenses.

Product Packaging for Automatic Soldering Robot:

The Automatic Soldering Robot is securely packed in a high-strength, corrugated cardboard box, with custom foam inserts that snugly fit around the machine to prevent movement during transit. The packaging is designed to withstand shocks and vibrations to ensure the product's integrity upon arrival. Additionally, the package includes a protective plastic cover to shield the robot from dust and moisture. All accessories and components are individually wrapped and labeled for easy identification.

Shipping Information for Automatic Soldering Robot:

We ship the Automatic Soldering Robot using a trusted logistics provider to ensure timely and safe delivery. The product is dispatched within 5-7 work days after order confirmation. A tracking number will be provided so you can monitor the shipment's progress. Please note that a signature will be required upon delivery to confirm receipt. It is essential to inspect the package upon arrival for any signs of damage during shipping. If any issues are found, please contact customer service immediately to resolve the matter.

Upgrade your production line today with our state-of-the-art 5 Axis Automatic Soldering Robot. Contact us for a customized soldering solution, technical specifications, or a live demonstration.
