Suction Type Manual Programming Touch Screen Single Screw Driver Lock Machine

Suction Type Manual Programming Touch Screen Single Screw Driver Lock Machine
Suction Type Manual Programming Touch Screen Single Screw Driver Lock Machine

Large Image :  Suction Type Manual Programming Touch Screen Single Screw Driver Lock Machine

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-TS5331
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package, foam inside
Delivery Time: 7~9 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per month
Detailed Product Description
Product Name: Screw Locking Machine Feeding: Blowing / Suction Feeding
Axis: 5 Axis Screws Compatible: M1-M6, Or Customized
Moving Range: 500*300*300*100mm Material: Main Aluminum
Port: Shenzhen Oem: Yes

Suction Type Manual Programming Touch Screen Single Screw Driver Lock Machine

Introduction

This touch screen control screw locking machine, is a very easy programming machine, which use hand moving the screw driver to location
the screw locking holes. The whole teaching time max take 10 mins. Its a simple programming screw machine, moreover this machine use thicker material, aluminum structure, and famous brand electric parts.

Specification



Model HS-TS5331
Production name Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z) 500*300*300*100mm
X/Y1/Y2 axis moving speed Closed loop motor :1-800mm/s
Z axis moving speed Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load Closed loop motor: 5KG
Z axis max load Closed loop motor: 3KG
Power supply AC110V/220V, 50/60Hz
Repeat accuracy ±0.02mm
Document support CAD CorelDraw
Suitable screws M1-M6
Machine dimension8 880*585*800mm
Machine weight 120kg



Main parts brand



1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell



Features


1, Suction type feeding, with single screw feeder and single locking head.
2, Desktop and visible operation, can connect the automatic production line.
3, 6 Axis operation, moving range 600*300*300*100*100mm.
4, Support multiple screw bins in suction mode.
5, Double working station, improve the production efficiency and reduce labor cost.
6, Easy adaptability for M1-M6, just by changing screw guider(Customization available).
7, Easy operation, operator can operate several machines at the same time.
8,The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

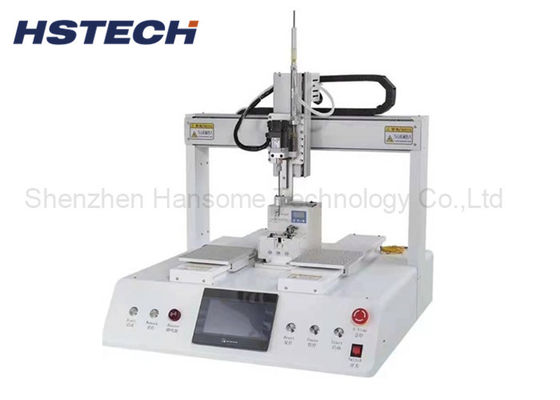

Suction Type Manual Programming Touch Screen Single Screw Driver Lock Machine 0Suction Type Manual Programming Touch Screen Single Screw Driver Lock Machine 1

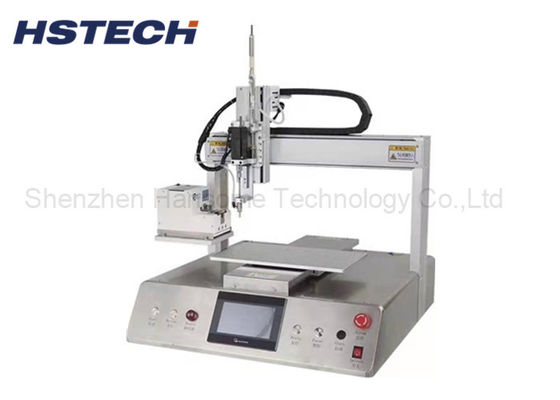

Suction Type Manual Programming Touch Screen Single Screw Driver Lock Machine 2
