2 Sets Temperature Controller Dual Head Dual Platform Auto Soldering Robot

2 Sets Temperature Controller Dual Head Dual Platform Auto Soldering Robot
2 Sets Temperature Controller Dual Head Dual Platform Auto Soldering Robot

Large Image :  2 Sets Temperature Controller Dual Head Dual Platform Auto Soldering Robot

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-DS5331
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 2900~4000USD/set
Packaging Details: Wooden box
Delivery Time: 5~7 work days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 pcs per month
Detailed Product Description
Product Name: Tabletop Soldering Machine Other Name: Dual Iron Dual Platform Solder Robot
Working Platform: Dual Platform Soldering Tip: Dual Soldering Head
Rotation: No Voltage: AC220V/110V
Usage: Pcb Soldeing,Welding,Circuit Board Soldering Warranty: 1 Year

2 Sets Temperature Controller Dual Head Dual Platform Auto Soldering Robot



Introduction



This automatic soldering machine is a high efficiency soldering robot, which with dual soldering table, double soldering head,each head with a soldering iron,  two temperature controller, but without Rotation function. This model suitable for soldering regular PCB board or production, dual soldering iron working at the same time, great improve the soldering efficiency. The machine adopt the air pressure and electricity driven, through the teacheng box for manual programing each points, then start the automatic soldering.



Features



1, Dual soldering table, dual soldering head.
2, Each soldering iron has a individual temperature controller.

3, Optional air purfier clean the solder smoke.

4, The soldering iron without nitrogen, very safety and environment protective,
5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

7, With the handheld teaching pendant, the programming is simple and easy to learn.



Specification



Model HS-DS5331
Voltage AC110V/220V,50/60Hz
X/Y/Z working range 500*300*300*100mm
R axis 360 degree
X/Y/Z moving speed max 300mm/s
Driven system Stepper motor,timing belt
Linear guide Taiwan brand high precison guide
Repeat accuracy ±0.02mm
Programing Teach pendant
Control system Control board
Program storage
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
File storage space
 Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
Iron Tin cleaning Air cleaning/pneumatic
External interface USB+RS232
Soldering method Point/drag soldering
Weight 48kg
Machine dimension

700*585*800mm

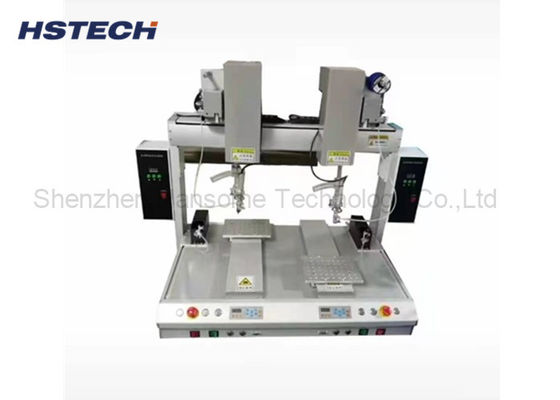

2 Sets Temperature Controller Dual Head Dual Platform Auto Soldering Robot 02 Sets Temperature Controller Dual Head Dual Platform Auto Soldering Robot 1

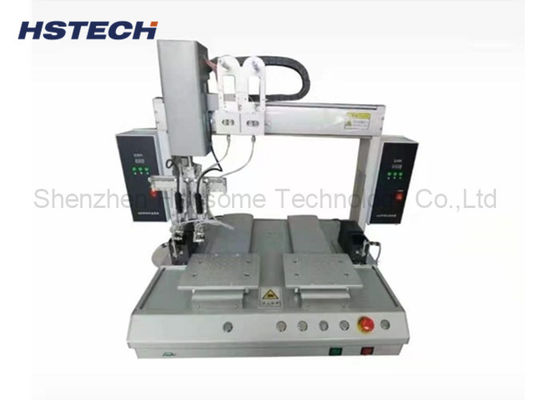

2 Sets Temperature Controller Dual Head Dual Platform Auto Soldering Robot 2

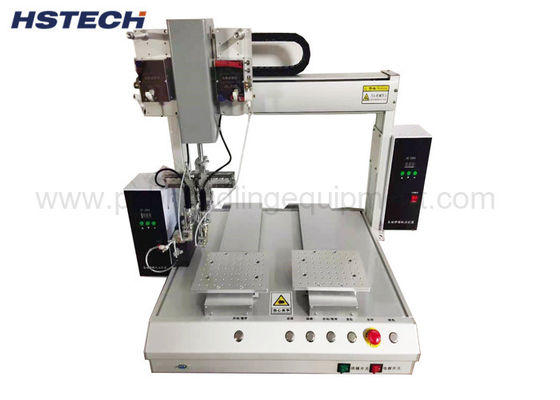

2 Sets Temperature Controller Dual Head Dual Platform Auto Soldering Robot 3
