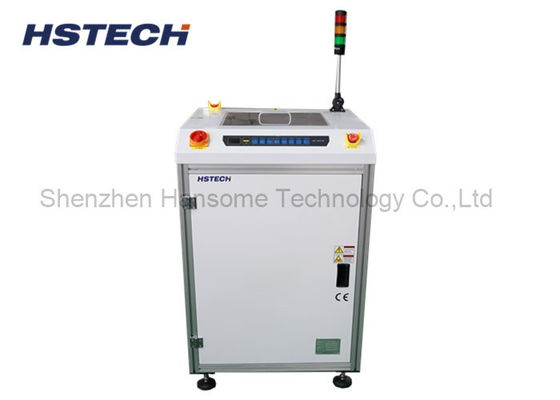

Rail Observation Window PCB Handling Equipment LED Button PLC Control

Rail Observation Window PCB Handling Equipment LED Button PLC Control
Rail Observation Window PCB Handling Equipment LED Button PLC Control

Large Image :  Rail Observation Window PCB Handling Equipment LED Button PLC Control

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-SZ460
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 12~20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: PCB Turn Conveyor Other Name: PCB Turning Board Handling Machine
Power Supply: AC100-230V,50/60Hz Control: PLC
Operation: LED Button Signal: SMEMA
High Light:

Rail Observation Window PCB Handling Equipment

,

PLC Control PCB Handling Equipment

,

LED Button PCB Turn Conveyor

LED Button Control Flexible Fixed Rail Observation Window PCB Turn Conveyor



Introduction



This machine used in the SMT/PCBA production line for turn the PCB flow direction.



Features



1, Change the PCB flow direction in 90,180,270 degree.

2, Fixed rail selection based on customer's requirement.

3, Soft LED button control, traditional but easy operation.

4, Top side safety transparent cover, operation can watch the whole working process.

5, Enclosed design with built-in torque limiter ensure high level safety.

6, Hiwin linear guide and lead screw to make smooth and precise rotation.

7, Minimize the transfer gap between conveyors.

8, PCB traffic flows can be customized.

8, Smooth and parallel width adjustment(lead screw).

9,SMEMA compatible.



Specification



Product name PCB Turn Conveyor
Transport height 910±20mm
Transportation direction L~R, or R~L
Cycle time Approx 5 seconds
Track fixed side Front side
Power supply AC100-230V,50/60Hz,single phase
Air pressure 4-6bar
Air consumption Max 10L/min
PCB thickness Min 0.4mm
Signal SMEMA



Model HS-SZ350 HS-SZ460
Efficient PCB length 50*50~450*350mm 50*50~550*460mm
Machine dimension 700*750*1200mm 840*890*1200mm
Weight 150kg 180kg



Rail Observation Window PCB Handling Equipment LED Button PLC Control 0

Rail Observation Window PCB Handling Equipment LED Button PLC Control 1
