| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-SZ350 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 12~20 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Turn Conveyor | Suitable PCB Dimension: | 50*50~450*350mm |
|---|---|---|---|
| Power Supply: | AC100-230V,50/60Hz | PLC: | MITSUBISHI |
| Sensor: | Sick | Contol: | LED Button |
| Turn Degree: | 90 Degree, 180degree, 270degree | Signal: | SMEMA |
| High Light: | 90 Degree PCB Turn Conveyor,Transparent Cover PCB Turn Conveyor,350mm Width Pcb Conveyor Machine |
||

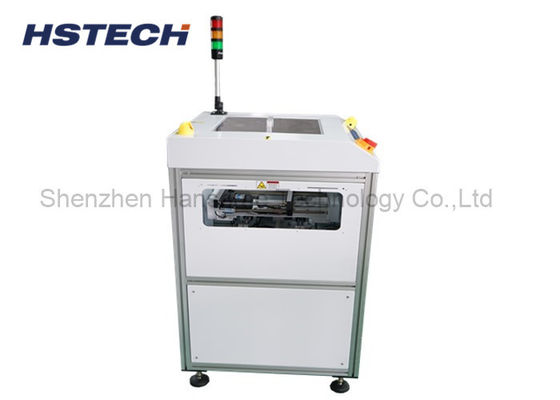

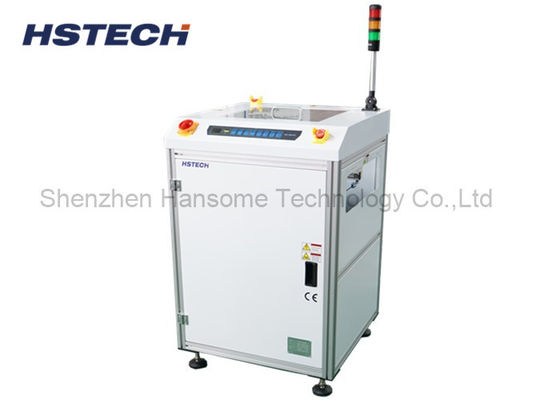

Top side Transparent Cover 350mm Width 90 Degree PCB Turn Conveyor
Introduction
This machine used for change the PCB flow direction in the SMT production line.
Features
1, Change the PCB flow direction in 90,180,270 degree.
2, Fixed rail selection based on customer's requirement.
3, Soft LED button control, traditional but easy operation.
4, Top side safety transparent cover, operation can watch the whole working process.
5, Enclosed design with built-in torque limiter ensure high level safety.
6, Hiwin linear guide and lead screw to make smooth and precise rotation.
7, Minimize the transfer gap between conveyors.
8, PCB traffic flows can be customized.
8, Smooth and parallel width adjustment(lead screw).
9,SMEMA compatible.
Specification
| Product name | PCB Turn Conveyor |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L |
| Cycle time | Approx 5 seconds |
| Track fixed side | Front side |
| Power supply | AC100-230V,50/60Hz,single phase |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| PCB thickness | Min 0.4mm |
| Signal | SMEMA |
| Model | HS-SZ350 | HS-SZ460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 700*750*1200mm | 840*890*1200mm |
| Weight | 150kg | 180kg |
