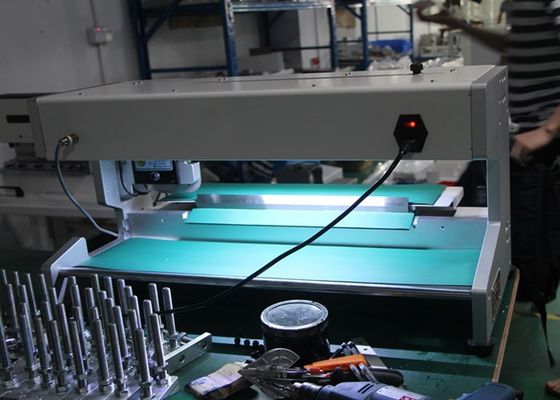

Stainless Steel PCB Depaneling Equipment 400mm Cutting Length LED Light Equipped

Stainless Steel PCB Depaneling Equipment 400mm Cutting Length LED Light Equipped
Stainless Steel PCB Depaneling Equipment 400mm Cutting Length LED Light Equipped

Large Image :  Stainless Steel PCB Depaneling Equipment 400mm Cutting Length LED Light Equipped

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-203
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per week
Detailed Product Description
Product Name: Blade Moving PCB Separator Other Name: Moving Blade Type PCB Separator Machine PCB Separator PCB Depanelize
Pcb Thickness: 0.2 To 5.0mm Power: 60W
Voltage: AC 110 / 220V,50/60HZ Usage: Cut V-cut Pcb
Package: Wooden Case Condition: New
High Light:

pcb board cutting machine

,

pcb depaneling machine

Stainless Steel 400mm Cutting Length LED Light Equipped PCB Depaneling Machine



Introduction



This type PCB separating machine we called it moving blade type automatic PCB seprating machine, it use the upper circular blade and the bottom linear work together, manual put the PCB board on the linear blade, make sure the V-cut line on the blade edge, step the feet switch to order the circular moving to finish the separating operation.



Features



1, Cutting length has two options, 400mm or 600mm.

2, Use high speed steel material to make the circular and linear blade, make sure the separating performance.

3, Digital LED display, can set the separating speed and circular blade moving distance.

4, The machine equipped with a counter, the display will show the boards separating quantity.

5, The max cutting width is unlimited, single PCB best at 1~200mm.

6, Buzzer alarm protection built in, also the light curtain and protective blade double safety guarantee, avoid operator injuiry.



Specification



Model HS-203 HS-206
Principle Linear blade insert into board V-slot, circular blade moving cutting
Blade Bottom linear balde, upper circular blade
Voltage AC110V/220V 50/60Hz
Blade size(circular blade) ϕ125mm*30mm*3mm
Blade size(linear blade) 420mm×65mm×6mm
Max cutting length 5~400mm 5~600mm
PCB thickness 0.8~3mm
Separation speed 300~500mm/second(adjustable)
Separation width Best 1~200mm
Components height ≤32mm( or customized)
Power 60W
Machine dimension 710x450x420mm 900x450x420mm
Weight 55kg 75kg



Board samples(Suitable for all kinds of V-groove PCB board:FR4, aluminum board,fiber glass board,

LED board, LED strip board)

Stainless Steel PCB Depaneling Equipment 400mm Cutting Length LED Light Equipped 0

Stainless Steel PCB Depaneling Equipment 400mm Cutting Length LED Light Equipped 1
