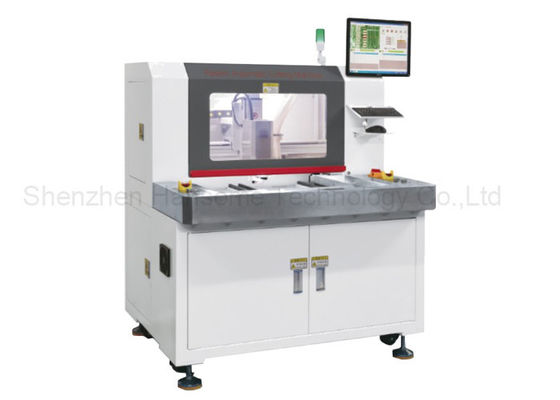

2000W PCB Separator Machine 4 Aixs Offline Dual Platform Windows System Control

2000W PCB Separator Machine 4 Aixs Offline Dual Platform Windows System Control
2000W PCB Separator Machine 4 Aixs Offline Dual Platform Windows System Control

Large Image :  2000W PCB Separator Machine 4 Aixs Offline Dual Platform Windows System Control

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: RM-F550
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 1 month
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Detailed Product Description
Product Name: Offline PCBA Router Machine Platform: Double
Working Platform: 300*350mm Repeat Accuracy: ±0.01
Cutting Accuracy: ±0.03 Machine Dimension: 1200*1050*1440mm(L*W*H)
High Light:

pcb cnc router

,

pcba cutting machine

4 Aixs Offline Dual Platform Windows System Control PCB Router Machine

Machine introduction



This machine RM-F550 is a new developed Router Machine. It is used to depaneling a whole printed circuit board assemblies (PCBA) into individual PCBa boards. The machine adopt a very stable platform to ensure the working precision, the working platform size is 300*350mm.

It has a larger platform option at 400*600mm.The machine provides user friendly "visual" programming for rapid and accurate online programming,also can detect the depaneling process.


Main features



1, Provide customers a high performance,high stable and security industrial equipment, using high precision linear guide, control card, and servo motor.



2, 4 axis motion control basen on the high resolution CCD vicual aligement, use double platform to make the production more efficiency.


3, Germany brand routing spindle, speed at 40000~60000rpm.


4, Taiwan Hiwin brand guide, make sure the moving system precision and smooth.



5, Tool life monitoring. After the cutter cuts a certain distance, it will automatically rise and fall to the position of another uncut blade.

6, Suitable for depaneling straight line, arc, and circular connectted boards.


7, The PCB substrate is placed by two-stage continuous sliding processing to reduce waiting time and increase production.


Sepcfication



Model RM-F328
Structure Single Spindle,double platform
Efficienty cutting length 300*350mm
Cutting types Straight line, arc, circular
Moving speed X/Y axis 1000mm/s,Z axis 500mm/s
Dust Collection method Upper collection
Spindle   40000~60000rpm
Routing Spindle Max60000rpm
Cutting speed 1-100mm/s adjustment
Cutting accuracy ±0.03mm
Repeat accuracy ±0.01mm
Programming colorful CCD
External connect USB
Router kit milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel
Power supply 380V
Machine power 2000W
Dust collector size 600*470*730mm
Dust collector power 2.2Kw,380V
Dust collector air pressure 4-6KG/cm³
Security door Manual door
Error alarm Yes
Program method Self programing,camera controlled by keyboard and mouser





Machine details



2000W PCB Separator Machine 4 Aixs Offline Dual Platform Windows System Control 0
