Width Adjustable PCB Handling Equipment SMT ESD Magazine Storage Rack Metal Material

Width Adjustable PCB Handling Equipment SMT ESD Magazine Storage Rack Metal Material
Width Adjustable PCB Handling Equipment SMT ESD Magazine Storage Rack Metal Material Width Adjustable PCB Handling Equipment SMT ESD Magazine Storage Rack Metal Material Width Adjustable PCB Handling Equipment SMT ESD Magazine Storage Rack Metal Material

Large Image :  Width Adjustable PCB Handling Equipment SMT ESD Magazine Storage Rack Metal Material

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-M355
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: 25~80usd/pc
Packaging Details: Carton package
Delivery Time: 5-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 500pcs per month
Detailed Product Description
Product Name: PCB Storage Magazine Dimension: 355*320*563mm
Type: Anti-static Color: Black
Top And Bottm Board: Durable Metal Storage Capacity: Max 50pcs
Condition: New Warranty: 1 Year
High Light:

smt production line equipment

,

pcb loader and unloader

Width Adjustable Max Store 50pcs SMT ESD Magazine PCB Storage Rack Handling



Introduction



This PCB Magazine,also called PCB storage rack is used for collecting the PCBs into the PCB loader machine,then loading to the SMT production ine, the magazines are made of volume conductive polypropylene and durable metal, the whole rack is anti-static, and the structure is very stable, which will well protect the PCBs from damage or bent.



Specification



Overal size 355*320*565mm,also has other options
Suitable PCB size 50*50~350*250mm
PCB storage capacity Max 50pcs
Side guid slot Depth 3.0mm, width 5.0mm, pitch 10mm
Surface resistance 105Ω-109Ω
Heat-resistance  80 °C/120°C/200°C
Width adjustment Gear Tracker / clips
Top and bottom base panel Metal material
Type Anti-static
Single weight 5kg



Features



1, This product is used for PCB loader machine, collect the PCBs and transport to the production line.

2, Top and bottom part using drable metal material panel, ensure the whole structure stable.

3,, The whold rack is anti-static design, max can store 50pcs PCBs.

4, Width can be adjusted via gear and fixed by the clip.

5, The rack is Non-toxic, odorless, moisture-proof, corrosion-resistant, durable,also can be stackable.

6, Stable structure, wont bent during operation, the racks also high temperature resistance.

7, Easy to install and disassembly, convenient for replacement and maintenance.

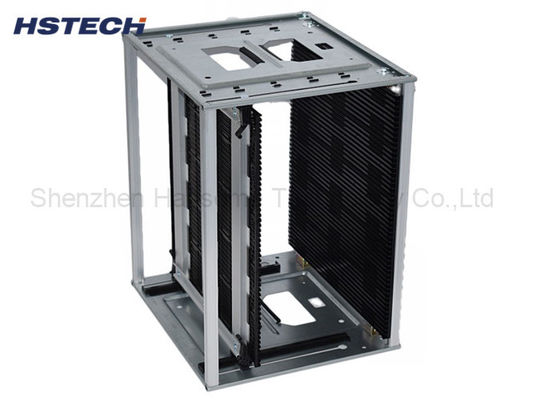

Width Adjustable PCB Handling Equipment SMT ESD Magazine Storage Rack Metal Material 0

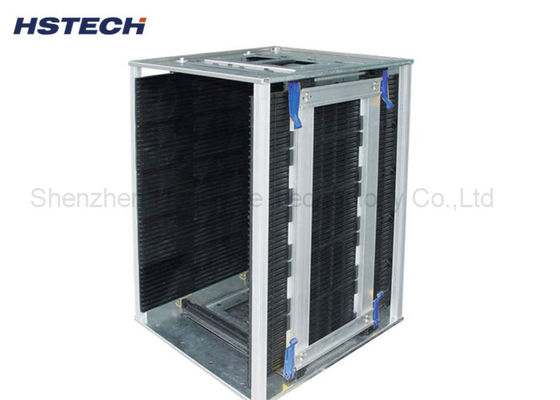

Width Adjustable PCB Handling Equipment SMT ESD Magazine Storage Rack Metal Material 1

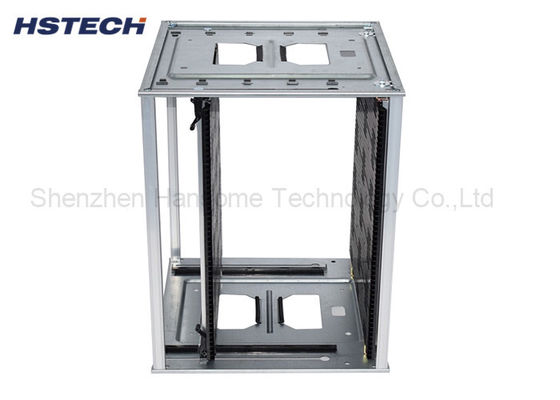

Width Adjustable PCB Handling Equipment SMT ESD Magazine Storage Rack Metal Material 2

Width Adjustable PCB Handling Equipment SMT ESD Magazine Storage Rack Metal Material 3
