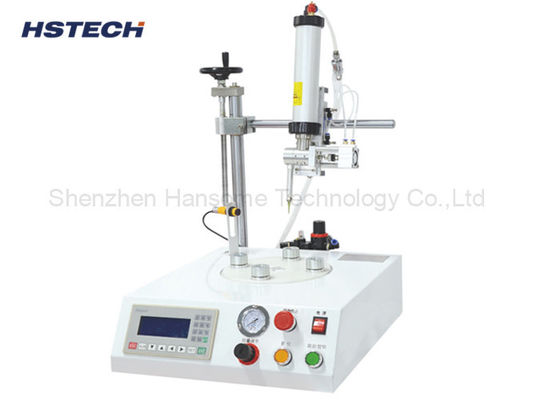

LED Bulb Glue Dispensing Machine 4 Rotary Working Stations Text Screen Automatic

LED Bulb Glue Dispensing Machine 4 Rotary Working Stations Text Screen Automatic
LED Bulb Glue Dispensing Machine 4 Rotary Working Stations Text Screen Automatic

Large Image :  LED Bulb Glue Dispensing Machine 4 Rotary Working Stations Text Screen Automatic

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-BD4
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: Wooden package, with foam
Delivery Time: 5~7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per week
Detailed Product Description
Product Name: LED Bulb Glue Dispenser Power Supply: AC220V/50~60Hz/200W
Max Dispensing Diameter: 160mm(two Station),110mm(four Station) Motor Speed: Max 300mm/s
Repeat Accuracy: ±0.02mm Warranty: 1 Year
Application: LED Bulb, LED Par Light Control Method: Text Screen
High Light:

commercial vacuum packaging machine

,

automatic glue dispenser

4 Rotary Working Stations Text Screen Automatic LED Bulb Glue Dispenser

Application

This LED bulb glue dispensing machine to apply glue on the base of the LED bulb or LED Par light, to connect with the housing of the lamp.
This Four-station round glue dispensing machine can be used for this application. Four stations are distributed by 90 degree on the revolution disc. Revolution motor rotates 90 degree each time to bring the work-piece to the gluing nozzle. Auto-rotation motor drives work-piece rotating in average speed to achieve evenly glue coating.

Specification

Model HS-BD4
MCU Industrial PLC
Programming Text Demonstration Programmer
Drive mode Precise Stepping Motor
Max Dispensing Diameter 160mm(two station),110mm(four station)
Motor Speed 0 ~ 300 RPM
Positioning Accuracy ±0.1mm
Z-axis Adjust Range 250mm
Z-axis Working Travel 50mm
Dimension (L*W*H) 420mm*532mm*532mm
Weight 35Kg
Working Power AC220V/50~60Hz/200W
Working Air Pressure 0.4~ 0.6Mpa(no condensation)
Working Temperature and Humidity Temperature: 0~40℃,Humidity: 20~90%

Machine feature


1, Four work stations in cycle, the designed capacity is 1000~1500pcs/h.

2, Equipped work piece detector to decide gluing or skip.

3, Gluing track can be set as full circle, single point or segmented arc etc.

4, Working mode can be four-station or two-station.

5, It is easy to learn and operate with touch screen and buttons, for different glue with different settings ensure the best performance.
