Vacuum Pick PCB Depaneling Router Machine With Dust Collector Germany Spindle

Vacuum Pick PCB Depaneling Router Machine With Dust Collector Germany Spindle

  • Vacuum Pick PCB Depaneling Router Machine With Dust Collector Germany Spindle
Vacuum Pick PCB Depaneling Router Machine With Dust Collector Germany Spindle
Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: ARX-811
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden case, foam protection
Delivery Time: 20~30 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Product Name: Inline PCBA Router Machine PCB Size: 50x50~260x340mm
PCB Thickness: 0.4-6mm Power Supply: AC380V, 50/60Hz
Separating Kit: Milling Cutter Warranty: 1 Year
High Light:

pcba cutting machine

,

inline pcba router machine

Germany Spindle Vacuum Pick PCB Depaneling Router Machine with Dust Collector



Introduction

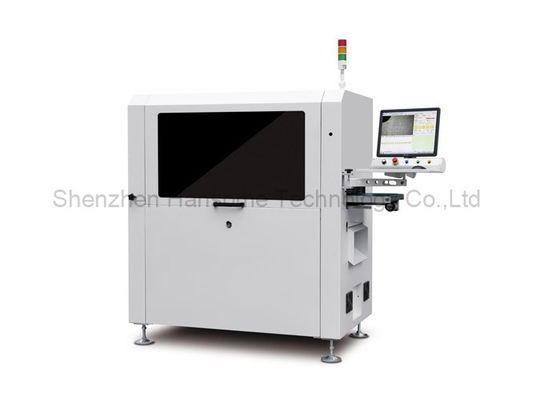

This machine is a inline automatic PCBA routing machine, using shank Tungsten steel milling cutter as the spearating tool, work with customized fixture to fix the PCBA, also clear up the dust with a dust collector after cutting, ESD belt to transport to downstream device.



Features



1, Vacuum pick and place the PCBA.

2, Bottom cutting.

3, Double platform cutting.

4, With broken knife detection.

5, Connect the automatic production line.

6, SPC statistics function and match the ERP system.

7, Can be equipped with automatic tool change, explosion-proof function of vacuum cleaner and air volume

monitoring function.



Specification



Model ARX-811
Max PCB size 260x340mm
Min PCB size 50x50mm
PCB thickness 0.4-6mm
Transmission height 900±50mm
Transport direction Left to right
Transportation speed 1500mm/s(max) Adjustable
Loading mode Section-type transportation guide rail
Rail width adjustment Automatic
Communication interface SMEMA
PCB positioning Fixtures positioning
Picking system Vacuum suction pick up
Cutting spindel/speed 60,000 rpm/min, Germany brand(optionnal 100,000 rpm/min, Germany brand)
Cooling type Self cooled type
Automatic tool change optional
Break knife check Yes
Separating speed 5-100mm/s
Cutting accuracy ±0.05mm
Milling kit φ0.8~φ3.0 right side ratation, shank Tungsten steel
Repeat positioning accuracy ±0.1mm
Coordinate moving speed 1000mm/s
Out plate type ESD belt transportation / batch panel forwardrding unit
Waste collection Waste cupboard collection
Procedure programing GERBER drawing import /editing program through visual system
Air supply 5-8 kg/cm³
Power supply AC380V, 50/60Hz, 3KW
Machine size 1500x850x1600 mm
Weight
Appro. 800kg



Machine size



Vacuum Pick PCB Depaneling Router Machine With Dust Collector Germany Spindle 0



Details



Bottom size dust collector.



Vacuum Pick PCB Depaneling Router Machine With Dust Collector Germany Spindle 1



Excellent CCD system with imaging camera, moritex lens and measurement - level light source, to support machine calibration,

compensation and positioning, with great stability and anti-distrubance capacity.



Vacuum Pick PCB Depaneling Router Machine With Dust Collector Germany Spindle 2



Omniponent vacuum suction chuck for picking, placing , unloading, and production.



Vacuum Pick PCB Depaneling Router Machine With Dust Collector Germany Spindle 3


Composite unloading system, used the ESD antistaic belt to transport the separated product on the top side, and the waster is transported on the bottom side, save much space by this method.



Vacuum Pick PCB Depaneling Router Machine With Dust Collector Germany Spindle 4
