| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-SL331 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, foam inside |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
| Product Name: | Desktop Screw Lock Machine | Material: | Titanium And Titanium Alloy |
|---|---|---|---|
| Axis: | 3 Axis | Suitable Screws: | M1-M5 |
| Motor: | Step Motor | Weight: | 55kg |
| High Light: | desktop screw machine,screw locking tightening machine |
||

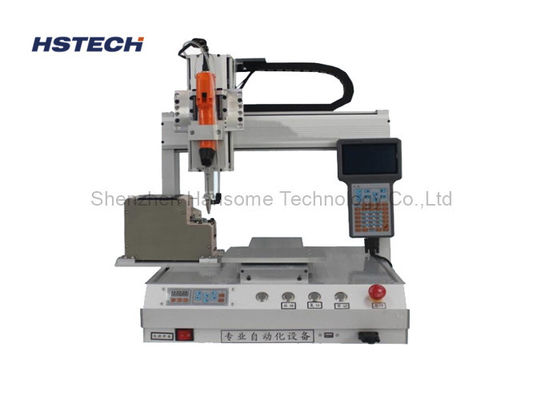

Step Motor Photoelectric Switch Screw Locking / Fastening Machine with 3 Axis
Introduction
This screw lock machine is used to lock the screws automatically to improve the production efficiency.
Features
1, Automatic locking, 3 axis working range, with fixed fixtures.
2, Desktop and visible operation, can connect the automatic production line.
3, Teach pendant programing, step motor and timing belt driving system.
4, Suitable for screws specification M1-M5.
5, Widely application, can used to many industry, like electronic production, top, LED light, vehicle electronics, toyes, power supply,
PC keyboard, etc.
6, Support CAD, corelDRAW format file input.
Specfication
| Model | HS-SL331 |
| Power supply | AC110V/220V, 50/60Hz |
| X/Y/Z working range | 300/300/100mm |
| XYZ speed | Max XY:600mm/s,Z:300mm/s |
| Y platform | 190*150mm |
| Repeat accuracy | 0.02mm |
| Motor | Stepper motor(Shinano Kenshi brand) |
| Driven system | Timing blet for X/Y, Z axis screw |
| Document support | CAD,CorelDRAW |
| Loading capacity | X/Y:10kg,Z:5kg |
| Linear Guide | HIWIN(Taiwan brand) |
| Photoelectric switch | PEPPERL+FUCHS(Germany brand) |
| Cylinder | AirTAC |
| Suitable screws | M1 - M5 |
| Machine size | 720*685*597mm |
| Gross weight | 75kg |
