| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-390VLL |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Product Name: | PCB Vacuum Loader / Loader Combined Machine | Warranty: | 1 Year |
|---|---|---|---|
| Control: | Touch Screen | PLC: | MITSUBISHI |
| Relay Brand: | Schneider | Optoelectronic Switch: | OMRON |
| Material: | Stainless Steel | Condition: | New |
| High Light: | smt assembly equipment,pcb loader and unloader |
||

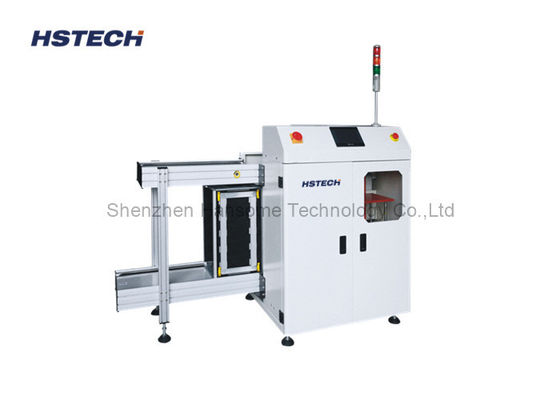

Automatic PCB Handling Equipment , Vacuum Loader / SMT Loader Combined
Application
This machine is a combined machine, it designed as a vacuum loader and normal magazine loader both,it used for the source of the SMT line, transport bare pcb or multi side board out from magazine to downstream machine
Specification
| Type | HS-250VLL | HS-330VLL | HS-390VLL | HS-460VLL |
| Power supply | AC100~230V 50/60Hz | AC100~230V 50/60Hz | AC100~230V 50/60Hz | AC100~230V 50/60Hz |
| Air Supply | 5kgf/c M2 | 5kgf/c M2 | 5kgf/c M2 | 5kgf/c M2 |
| PCB Size | 50*50~350*250 | 50*50~455*330 | 50*50~530*390 | 50*50~535*460 |
| PCB Direction | left to right or right to left | |||
| Magazine Size | 335*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Step pitches | 10,20,30,40mm | |||
| Storage capacity | 200pcs | |||
| Transport height | 900±20 | 900±20 | 900±20 | 900±20 |
| Motor power | 300W | |||
| Machine size | 1600*850*1200 | 2000*950*1200 | 2250*1050*1200 | 230*1050*1300 |
| Weight | 140kg | 180kg | 220kg | 280kg |
| Optional control panel | touch screen | |||
Features
1, PLC control system
2, 3 magazines loading capability
3, Suction position is adjustable
4, Board storage devie with the fuction of evevator
5, Designed gas circuit for transmit PCB smoothly and stably
6, With vacuum load and magazine load 2 models
7, Standard SMEMA
Contact Person: Mr. Rudi Jin
Tel: 86-755-23209382
Fax: 86-755-23209382
