Keyence Ion Wind Bar Spiral Brush Dust Collector PCB Surface Cleaner Equipment

Keyence Ion Wind Bar Spiral Brush Dust Collector PCB Surface Cleaner Equipment
Keyence Ion Wind Bar Spiral Brush Dust Collector PCB Surface Cleaner Equipment Keyence Ion Wind Bar Spiral Brush Dust Collector PCB Surface Cleaner Equipment

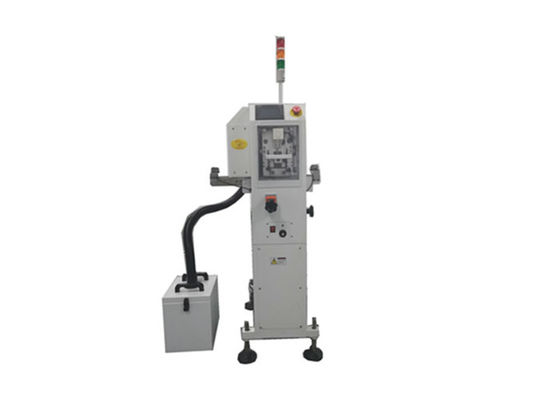

Large Image :  Keyence Ion Wind Bar Spiral Brush Dust Collector PCB Surface Cleaner Equipment

Product Details:
Place of Origin: China
Brand Name: HSTECH
Certification: CE
Model Number: HS-460BC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden package
Delivery Time: 12~20 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detailed Product Description
Product Name: PCB Surface Dust Cleaner Color: White
Power Supply: AC100-230V PLC: MITSUBISHI
Relay: Schneider Optoelectric Switch: OMRON
Ion Wind Bar: Keyence Condition: New
Material: Stainless Steel
High Light:

smt production line equipment

,

pcb loader and unloader

Keyence Ion Wind Bar Spiral Brush Dust Collector PCB Surface Cleaner Equipment



Introduction



This machine is used between PCB loader and screen printer, with brush and sticker roller to clean the dust,electricity static on the surface of the PCB.



Specification



Model HS-250BC HS-330BC HS-390BC HS-460BC
PCB dimension (50*50)~(350*250) (50*50)~(460*330) (50*50)~(530*390) (50*50)~(530*460)
Machine dimension 555*820*1350 555*900*1350 555*960*1350 555*1030*1350
Weight 80kg 90kg 100kg 110kg



PCB thickness 0.4~5mm
Power supply AC100~230V,single phase,300A
Air supply 0.4~0.6Mpa
Cleaning brush top 2 pcs
Sticker roller top 1 pc
Brush ESD,high precision brush
If with dust collector Yes
Transport speed 0~9m/min,adjustable
Transport height standard 900±20mm
Direction L to R, or R to L,optional
Cycle time Around 8s



Features



1, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
2, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
3, Equipped with the static eliminate function, completely eliminate electrostatic interference.
4, Touching clean method, cleanness above 99%.
5, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.
6, Mechanical parts draw-out design, maintenance is simple.
7, Interface display in English and Chinese, interface operation convenient and simple.



Keyence Ion Wind Bar Spiral Brush Dust Collector PCB Surface Cleaner Equipment 0

Keyence Ion Wind Bar Spiral Brush Dust Collector PCB Surface Cleaner Equipment 1



Keyence Ion Wind Bar Spiral Brush Dust Collector PCB Surface Cleaner Equipment 2
