| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-SL5331 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package, foam inside |
| Delivery Time: | 7~9 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per month |
| Product Name: | Automatic Screw Lock Machine | Material: | Titanium And Titanium Alloy |
|---|---|---|---|
| OEM: | Accept | Axis: | 4 Axis |
| Suitable Screws: | M1-M5 | Drive System: | Step Motor And Timing Belt |
| High Light: | desktop screw machine,screw locking tightening machine |
||

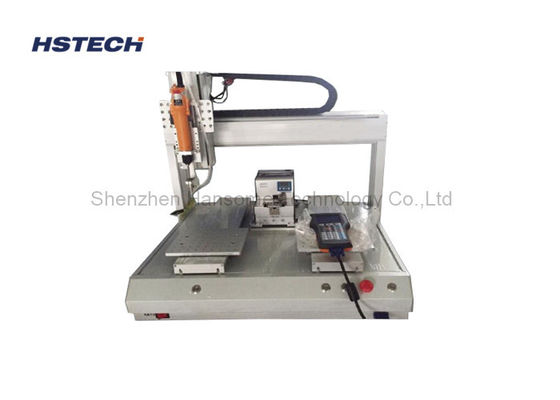

Desktop Automatic 4 Axis Double Y platform Screw Locking / Fastening Machine
Introduction
Using this screw locking machine to realizes the automatic conveying, tightening and testing of screws through various electric and pneumatic components.
Through equipment to reduce the number of manuals and reduce the bad factors caused by manual misoperation.This equipment is a typical customized automation equipments.
Features
1, Easy and straightly desktop operation, can connect with production line operation, convenient replacement products.
2, Y axis can according to need to make double location ( double Y axis), the operator can alternate products up and down.
3, This equipment is mainly used for lock the screws size from M1-M5.
4, Support CAD documents input.
5, this Automatic screw feeding machine available for similar size screw length is ±5 mm.
Specfication
| Model | HS-SL5331 |
| Voltage | AC110V/220V,50/60Hz,Meanwell brand |
| X/Y1/Y2/Z working range | 500/300/300/100mm |
| XYZ speed | Max XY:600mm/s,Z:300mm/s |
| Y platform | 190*150mm |
| Repeat accuracy | 0.02mm |
| Motor | Stepper motor(Shinano Kenshi brand) |
| Driven system | Timing blet for X/Y, Z axis screw |
| Document support | CAD,CorelDRAW |
| Loading capacity | X/Y:10kg,Z:5kg |
| Linear Guide | HIWIN(Taiwan brand) |
| Photoelectric switch | PEPPERL+FUCHS(Germany brand) |
| Cylinder | AirTAC |
| Suitable screws | M1 - M5 |
| Machine size | 720*685*597mm |
| Gross weight | 75kg |
