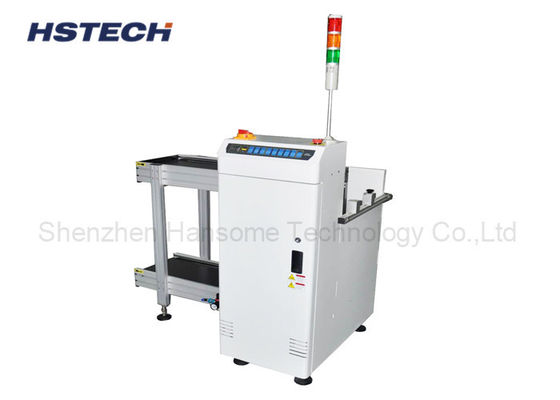

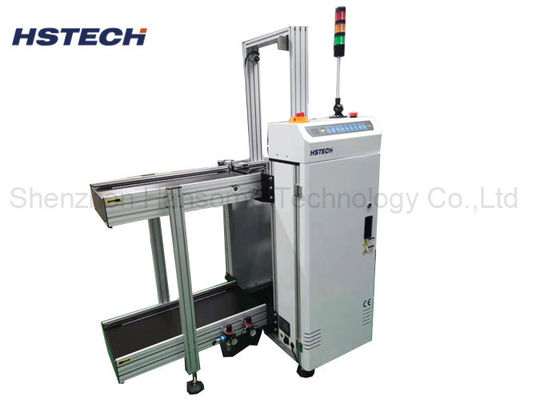

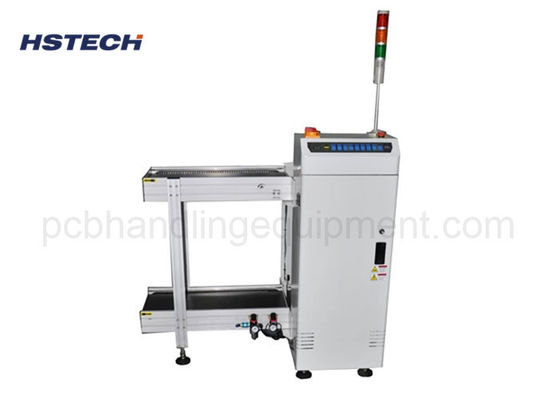

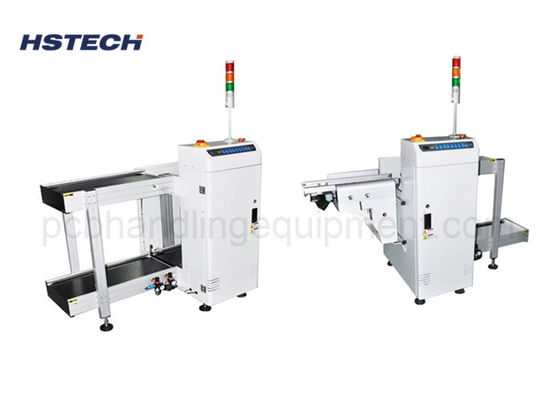

Product Name: 250mm / 330mm PCB Loader Equipment Other Name: Magazine Loader
Transport Height: 920±20mm PCB Loading Time: Approx 6 Seconds
Magazine Replace Time: Approx 30 Seconds Transportation Direction: L~R, Or R~L
Operation: Front Operation PCB Thickness: Min 0.4mm



Belt Transporting PCB Width Adjustment 3 Color Display SMT Magazine Loader







Features



  • 4 PCB width selectable, 250mm/330mm/390mm/460mm.
  • Precision PCB pusher.
  • 3 color light for machine statu display.
  • Standard work with 3 magaiznes, top side 1 magazine, buttom 2 magazines.
  • Standard LED button control, optional touch screen control.
  • Stability stainless steel structure.
  • Smooth and parallel width adjustment.
  • No PCB breakage guaranty during loading.
  • CE listed, suitable for Europe market.





Specification



Model HS-LD330
Product name PCB Magazine Loader
Transport height 920±20mm
PCB loading time Approx 6 seconds
Magazine replace time Approx 30 seconds
Transportation direction L~R, or R~L
Operation Front operation
Track fixed side Front side(or specify)
Power supply 220V,50/60Hz,±10%
Air pressure 4-6bar
PCB thickness Min 0.4mm
Magazine qty Upper side:1 pc,bottom side: 2 pc
Pitch selection 1-4(10mm pitch)
Conveyor speed 0.5-20M/min or customized
Signal SMEMA



Model selection



Model HS-LD250 HS-LD330 HS-LD390 HS-LD460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine Size 1400*800*1200mm 1650*880*1200mm 1800*940*1200mm 1800*1010*1200mm
Magazine size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 180kg 220kg 260kg





Application



This machine is a PCB loading machine, it used in the start of SMT production line, the machine push the PCB from magazine racks and transporting to the downstream machine of the production line.
