| Place of Origin: | China |
| Brand Name: | HSTECH |
| Certification: | CE |
| Model Number: | HS-206 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden package |
| Delivery Time: | 5-7 work days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100pcs per week |
| Product Name: | Blade Moving PCB Separator | Other Name: | V-cut PCB Separating Machien |
|---|---|---|---|
| Blade: | Circular/linear Blade Combined | Switch: | Foot Switch |
| Suitable Board: | FR4,aluminum,fiber-glass Board,LED Board,LED Strip | Color: | White |
| Pcb Thickness: | 0.8mm -3mm | PCB Length: | Max 600mm |
| High Light: | pcb depaneling machine,pcb board cutting machine |
||

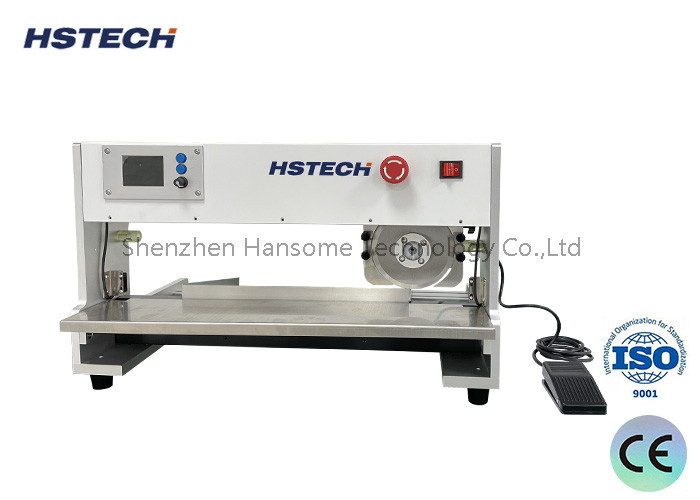

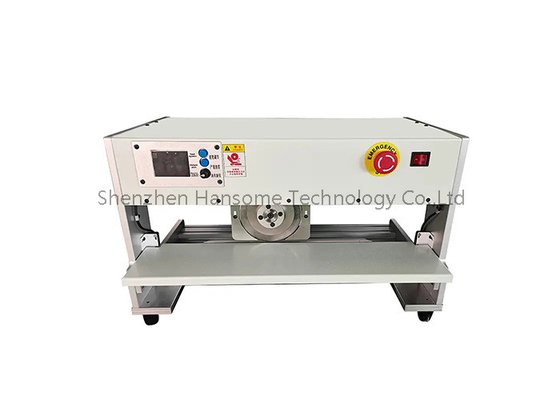

Blade Moving 600mm Cutting Length V-cut PCB Separating Machine with Counter
Features
1, Max cutting length 600mm, or optional 400mm max length.
2, Circular blade and linear blade work together, circular blade moving separating.
3, Blade Moving 600mm Cutting Length V-cut PCB Separating Machine with Counter
4, The max cutting width is unlimited, single PCB best at 1~200mm.
5, The operation platform can be adjustment, based on the height of upper components of the PCB, standard machine the height is less than 32mm.
6, Buzzer alarm protection built in, also the light curtain and protective blade double safety guarantee, avoid operator injuiry.
Specification
| Model | HS-203 | HS-206 |
| Principle | Board insert to the V-slot,blade moving cutting | |
| Blade | Bottom linear balde, upper circular blade | |
| Voltage | AC110V/220V 50/60Hz | |
| Blade size(circular blade) | ϕ125mm*30mm*3mm | |
| Blade size(linear blade) | 420mm×65mm×6mm | |
| Max cutting length | 5~400mm | 5~600mm |
| PCB thickness | 0.8~3mm | |
| Separation speed | 300~500mm/second(adjustable) | |
| Separation width | Best 1~200mm | |
| Components height | ≤32mm( or customized) | |
| Power | 60W | |
| Machine dimension | 710x450x420mm | 900x450x420mm |
| Weight | 55kg | 75kg |
Board samples(Suitable for all kinds of V-groove PCB board:FR4, aluminum board,fiber glass board, LED board, LED strip board)
